- With Magnetic: No
- Model Number: PCB Fixture Holder for iPhone Samsung
- item: MJ K22 Motherboard PCB Fixture
- Application: for Motherboard PCB Repair
- Function: BGA Chips Positioning Soldering Desoldering Reballing Platform
- Feature 1: Pure copper heat conduction block
- Feature 2: Designed with integrated layer tin planting function
- Feature 3: Designed with precision positioning column
- Feature 4: High temperature direct heating

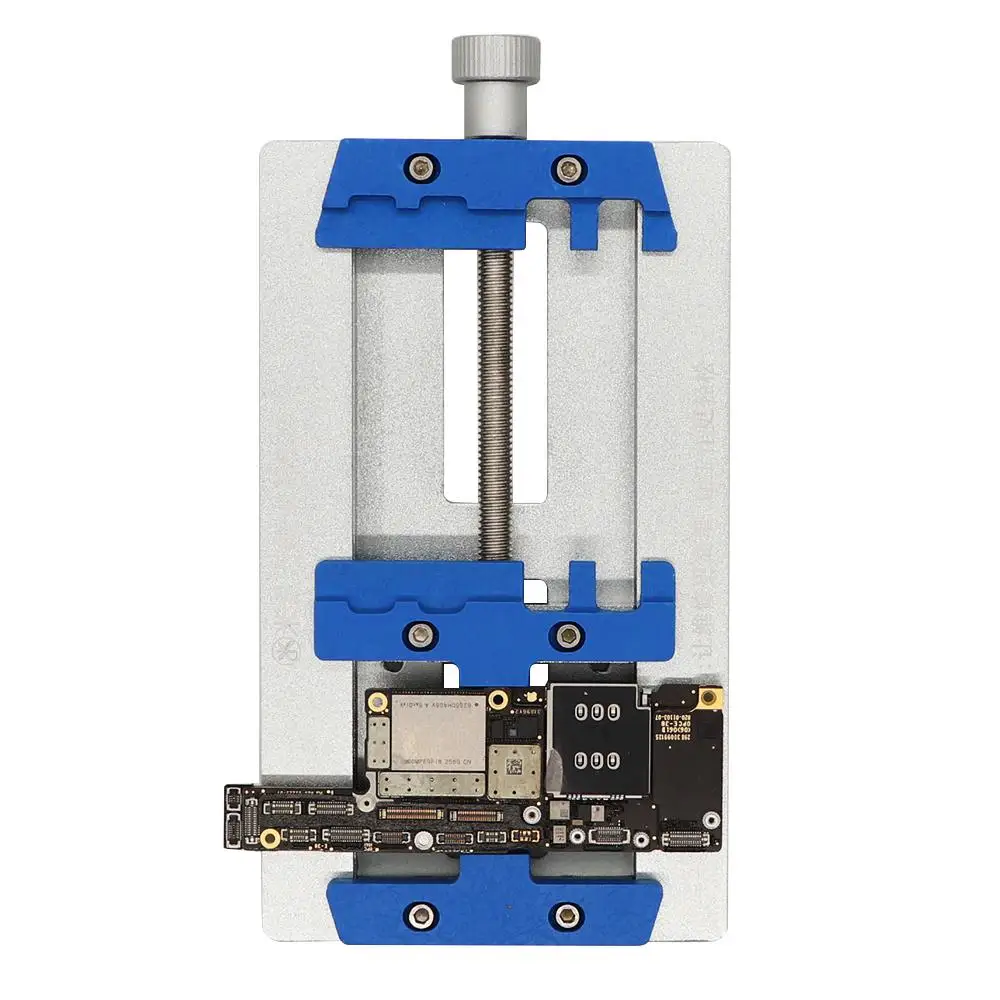

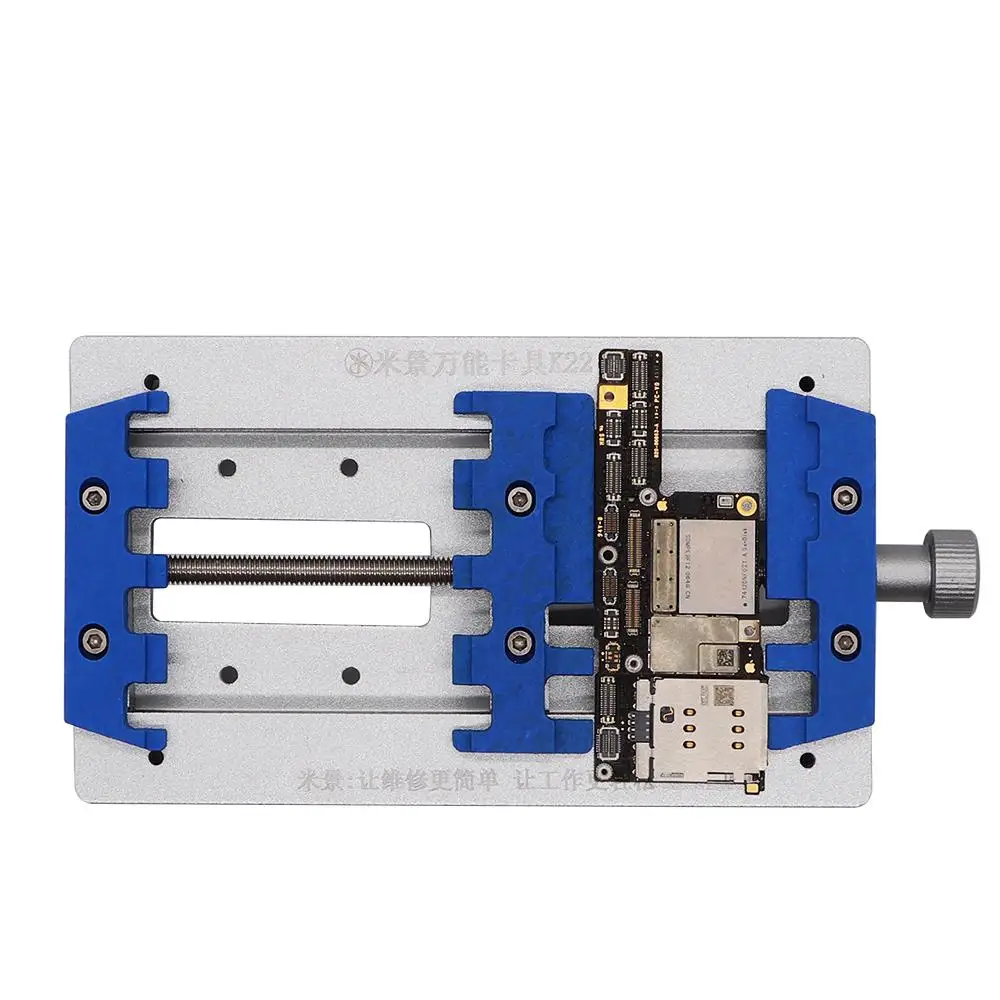

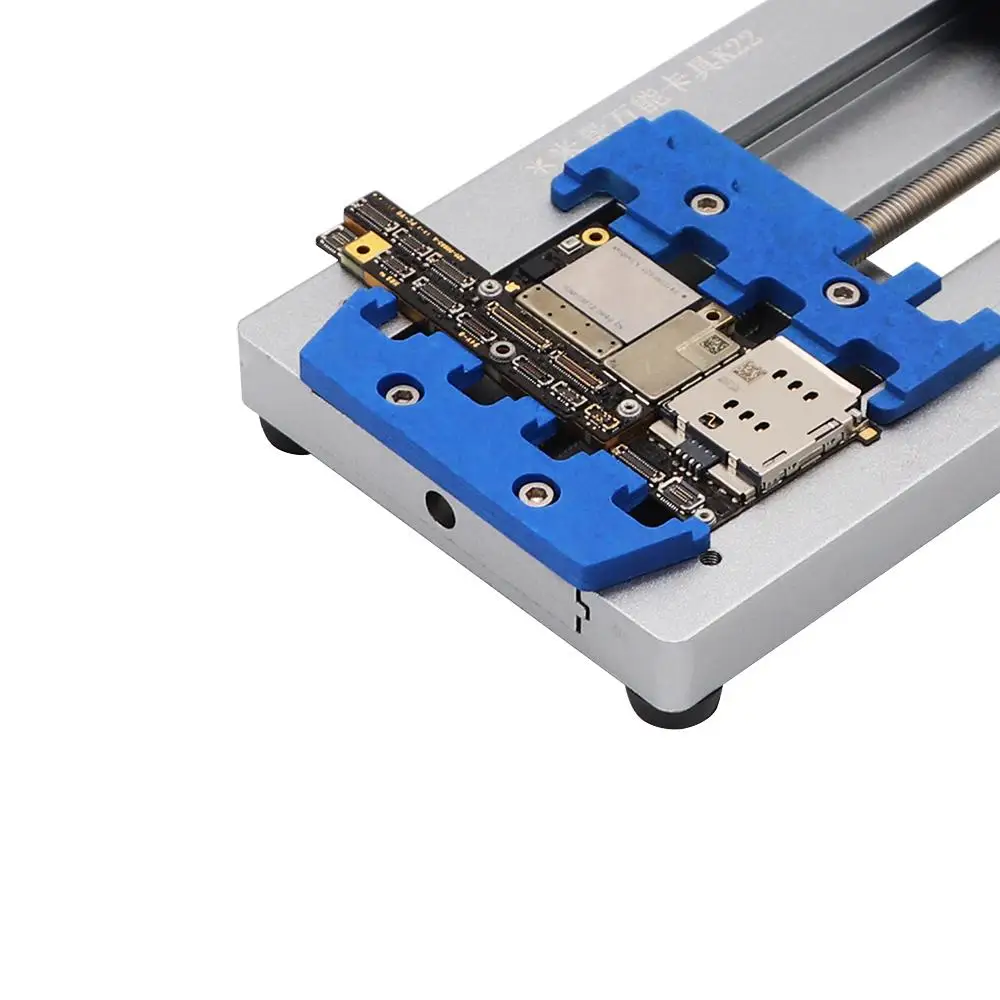

MJ K22 High Temperature circuit board soldering Jig Fixture, universal PCB Board Holder Fixture for mobile phone motherboard soldering repair,

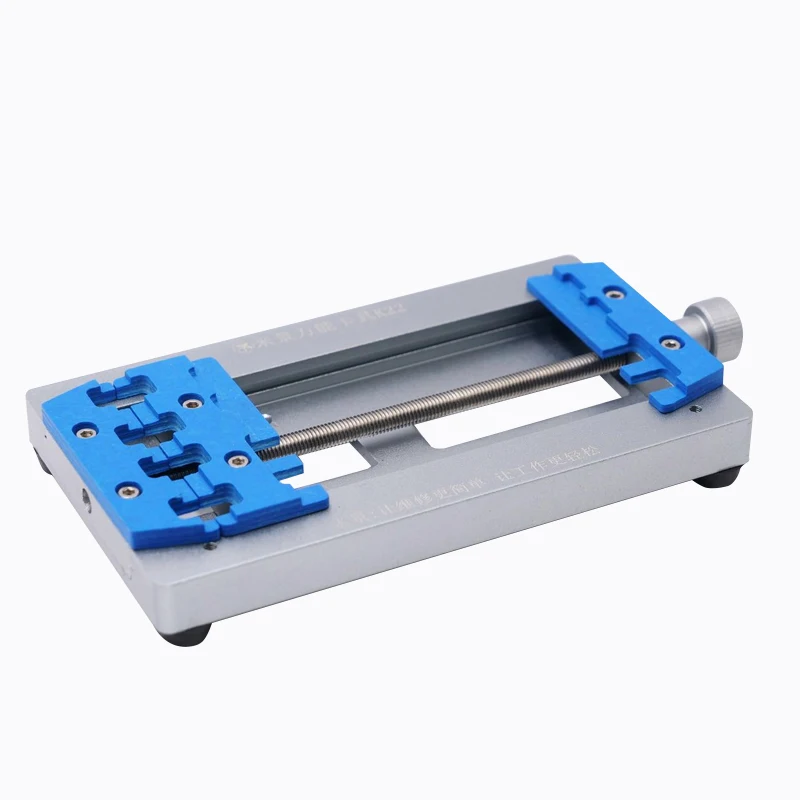

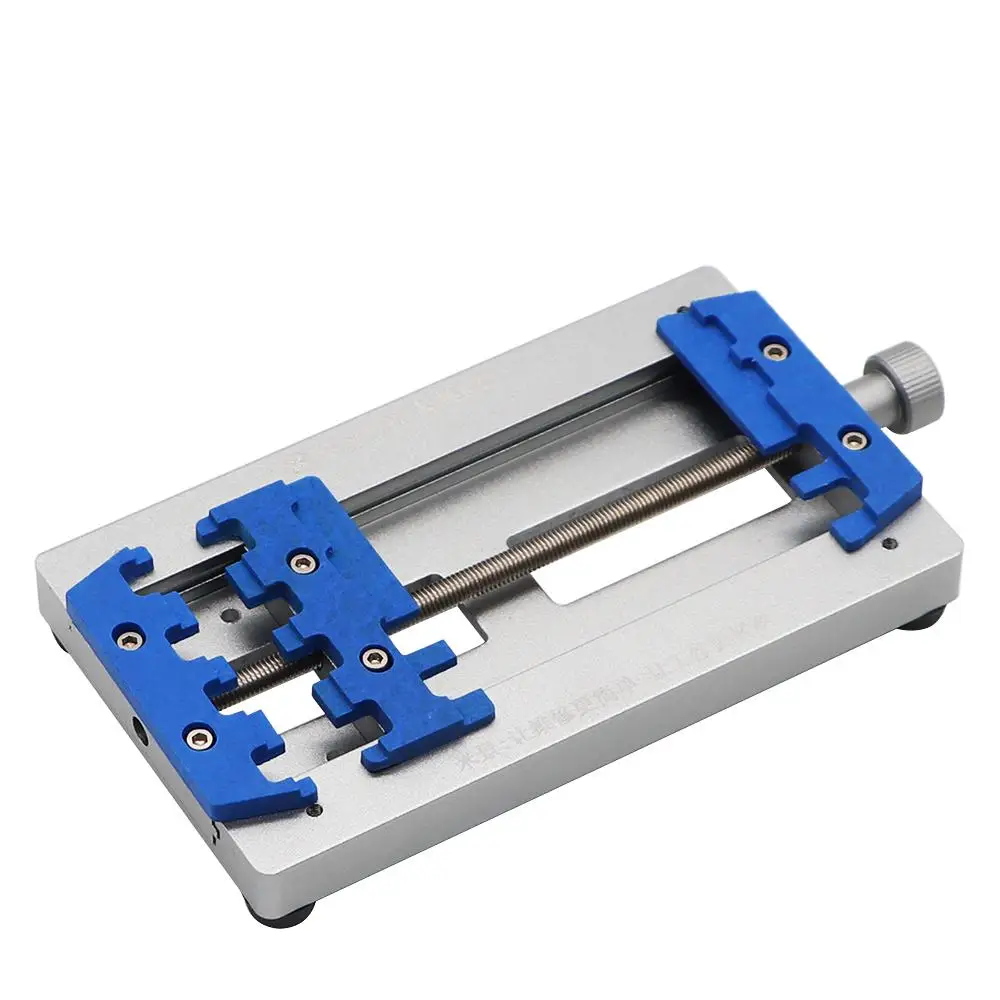

Multifunction MJ K22 Universal PCB Board Holder Fixture.
Length:15.5CM
Width:8.2CM
Height:2.lCM
Feature:
mobile phone Motherboard Repair Universal maintencance fixture holder, rotary fixed design, no rebound, fixed firmly! The design has three adjustable distances.

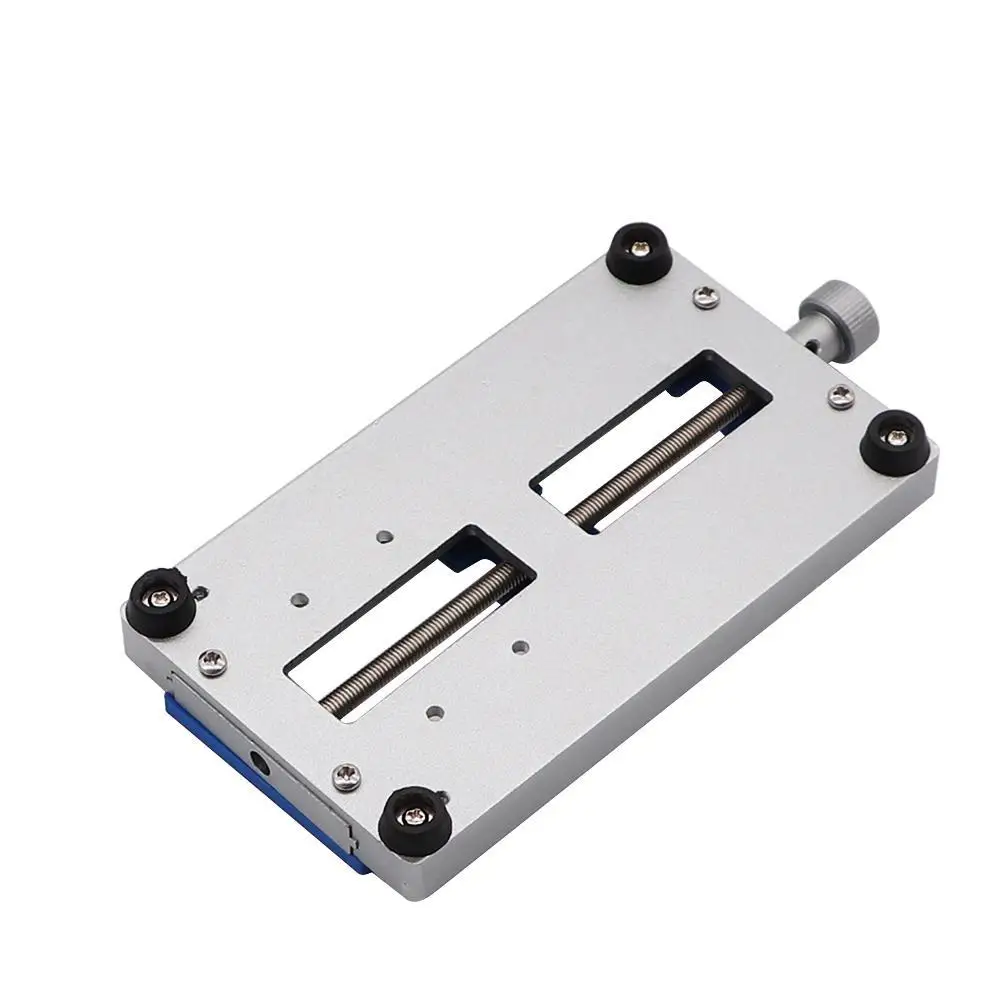

Prevent clamps from moving during use, special anti-skid pad, in order to allow heating. Let the hot air can be discharged more efficienty. Add heat sink to botton of clamp.

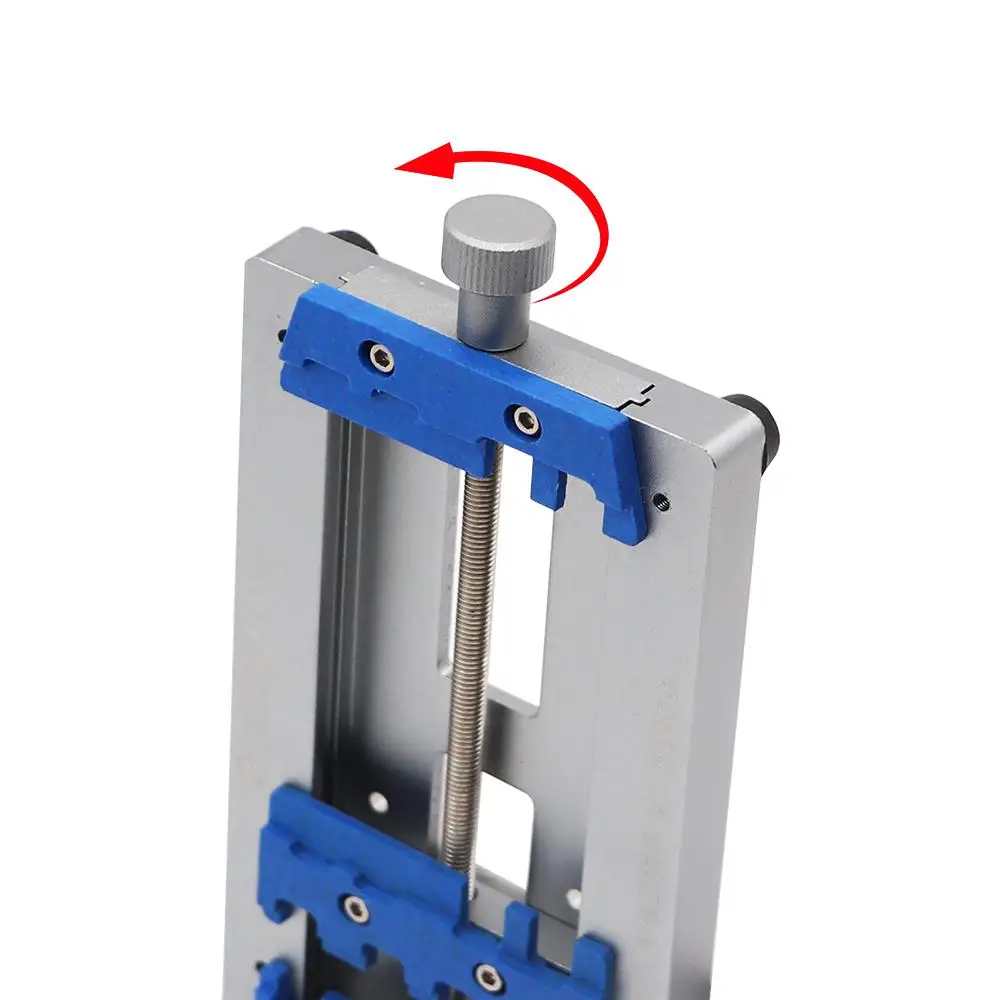

Rotary shaft locks the motherboard or IC more efficienty, Fixed well without rebound.
PCB Fixture also support IC type fixtures fixed for removal of back glue, the clamp is designed to bear the force of IC beam, which can hold up the empty parts of IC well and aovid the IC breaking when removing black glue.
The PCB fixture can be adjusted at difference distance from the high, middle and low levels. It’s necessary to loosen the two screw as the bottom, move the fixing plate to the appropriate gear position, and then tighten the bottom screws to lock it.
