- Brand Name: wozniak
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- Type: Combination
- Package: Case
- Application: Computer Tool Kit
- is_customized: No
- Model Number: Mijing z20 PRO
- Size: 102X54X9.4MM
- Type: Phone Repairing Tools
- Middle Layer Board: for iPhone For iPhone 12/12mini/12pro/12pro max
- Features 1: Motherboard Repair Planting Tin Fixture for ipx xs xsmax
- mijing: X- MAX/11/11PRO /11PROMAX/12/12mini/12pro/12pro max
- for iphone: BGA Reballing Fixture
- Application: Mainboard Soldering repair
- Application1: for iphone X XS XSMAX Mainboard repair
- Application2: for iphone11 11PRO 11PROMAX Mainboard repair
- Feature: Phone Repair jig
- Application3: For iPhone 12/12mini/12pro/12pro max
- Application4: For iPhone 13/13mini/13pro/13pro max

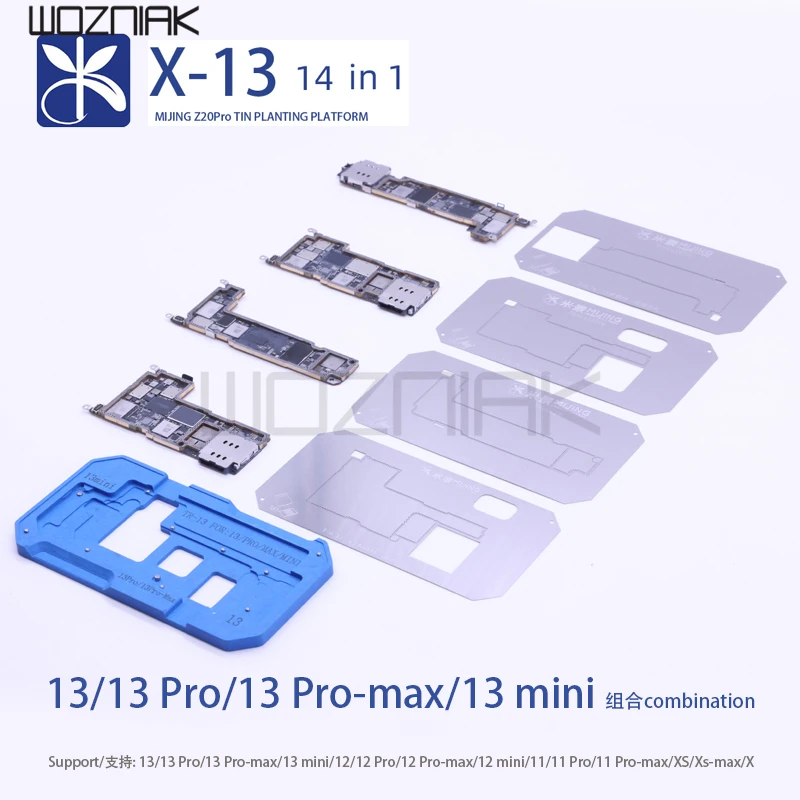

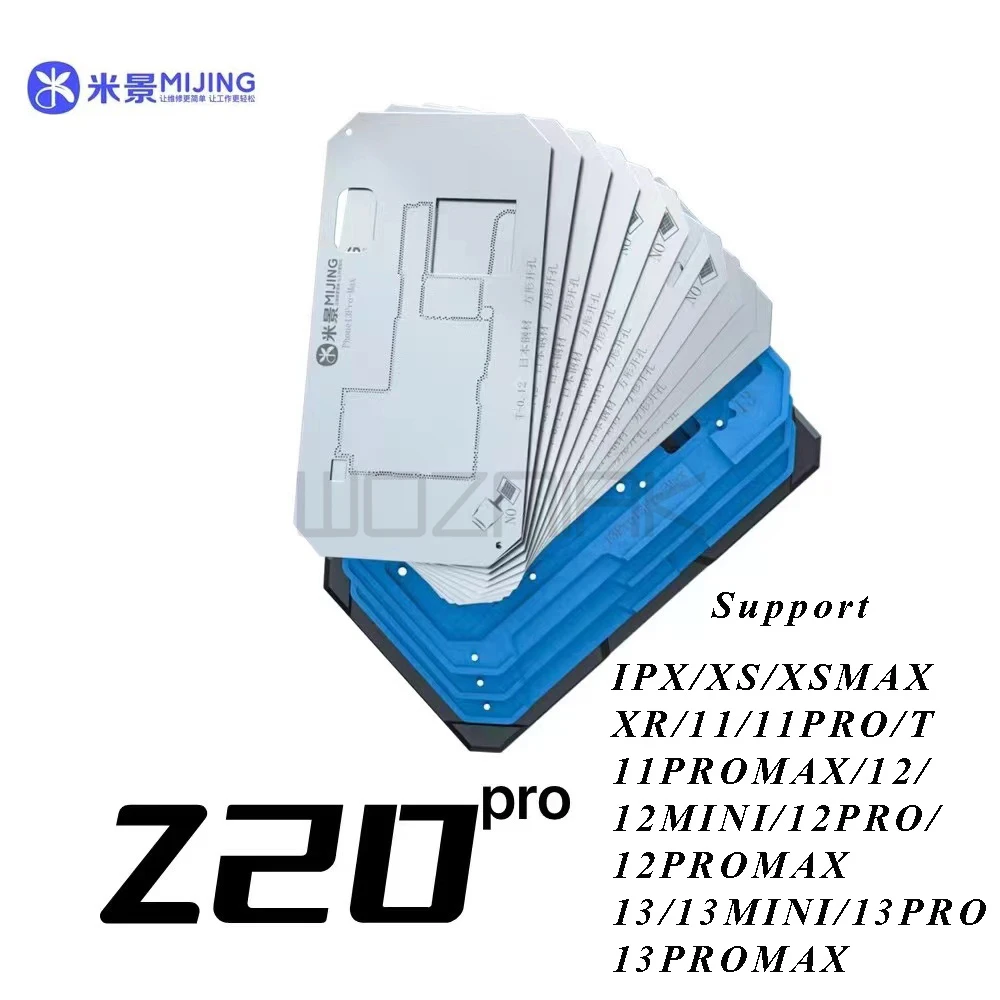

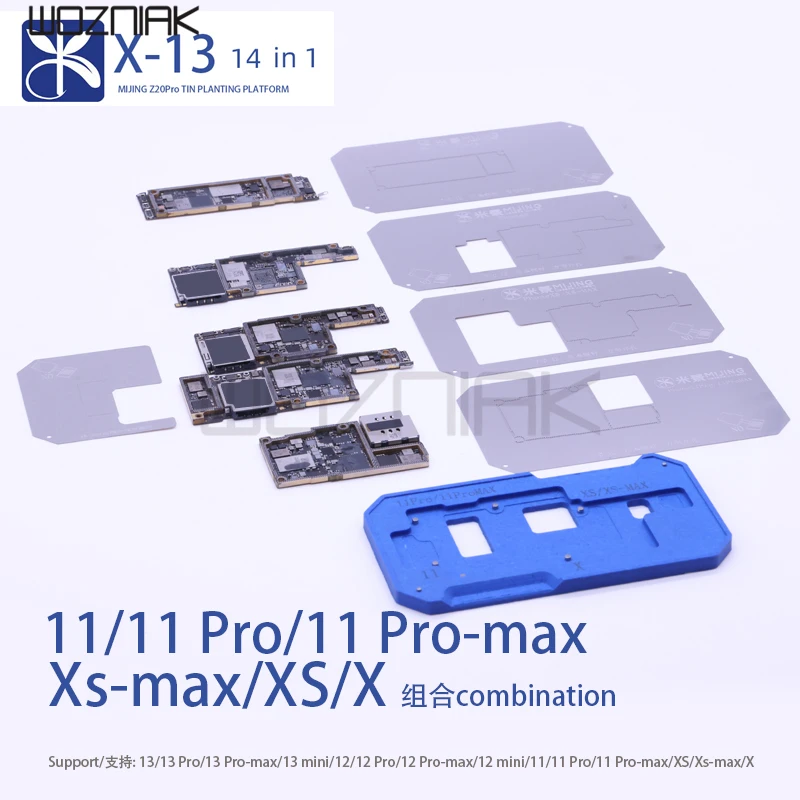

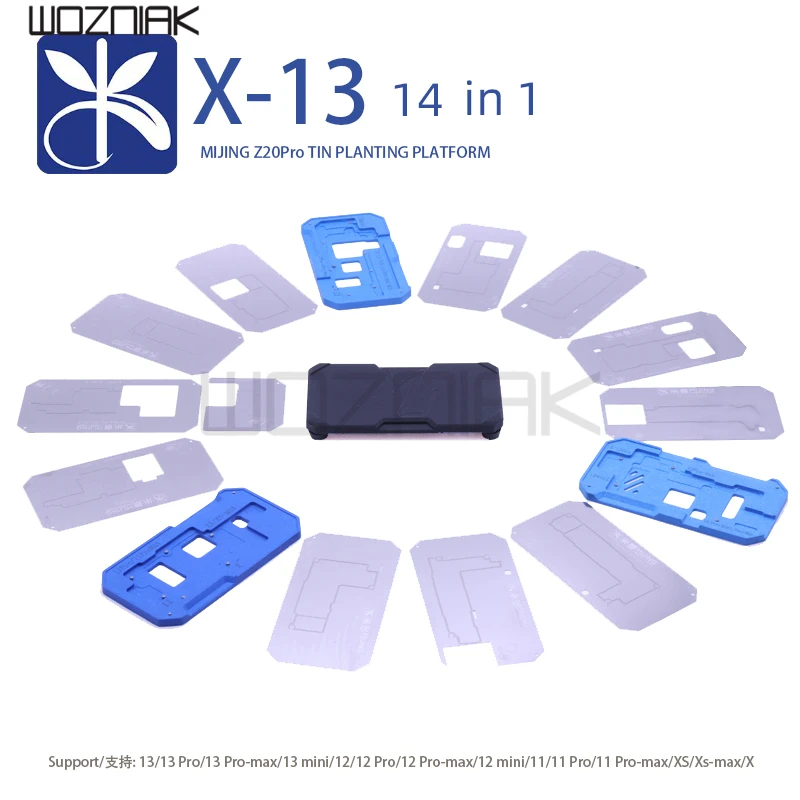

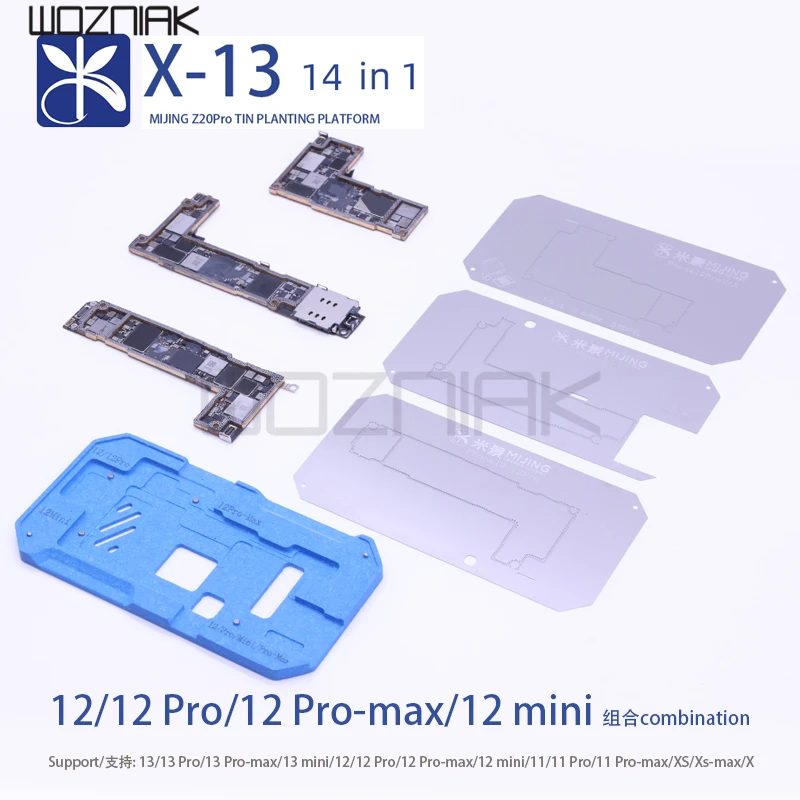

MiJing Z20 Pro 14 IN 1 Middle Layer Planting Tin Platform For iPhone X-13 pro max BGA Reballing Stencil Platform Fixture With Stenci
MJ Z20 Pro 14 in 1 middle layer planting tin platform is a professional BGA reballing stencil fixture for iPhone X-13/13 Pro PCB BGA repair, mobile phone motherboard repair jig fixture used for positioning and reballing iPhone X-13 Pro Max PCB BGA parts.
Product Features :
iPhone X-13/13 Pro BGA reballing fixture tool.Used for positioning and reballing iPhone X- 13/13 Pro PCB BGA parts.Convenient and faster for reballing BGA without any damage.Offer you best solution for iPhone X-13/13 pro BGA reballing and repairing.
Usage Steps :

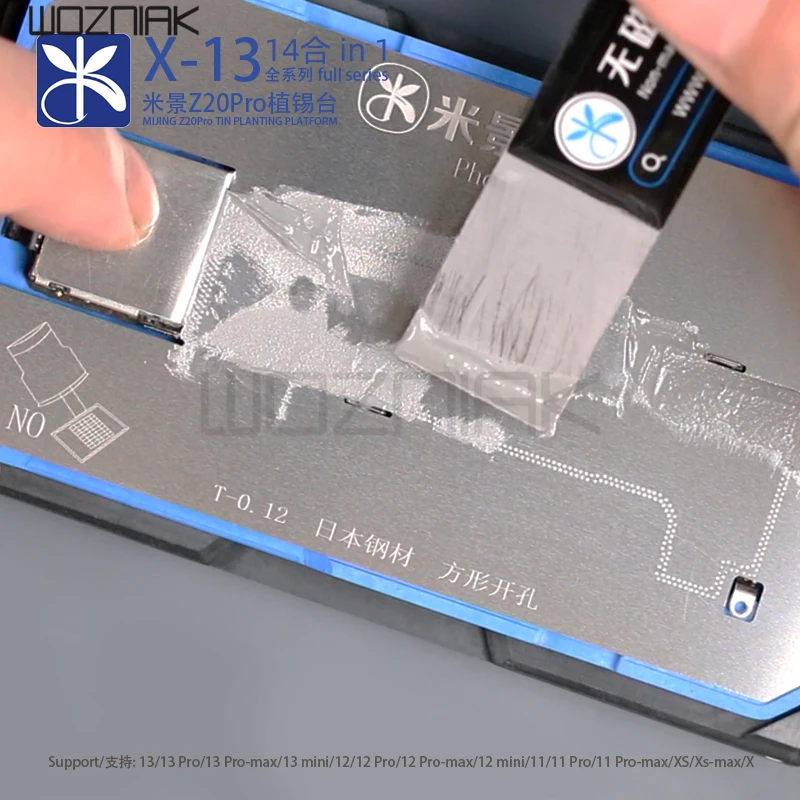

Take out the Z20 tin planter and place the bottom platePlace gaskets as needed (when planting tin in the RF middle frame of the XS Max motherboard, you need to place functional functional gaskets and then place the RF dedicated tin planting net)Place the main board and locate it through the positioning column and limit areaPlace the tin-planting net magnet according to the model to automatically adsorb the positioning hole and align the tin-planting station positioning postPlace tin spacers according to requirementsUse a tin scraper to evenly fill the mesh with tin paste
How to install :

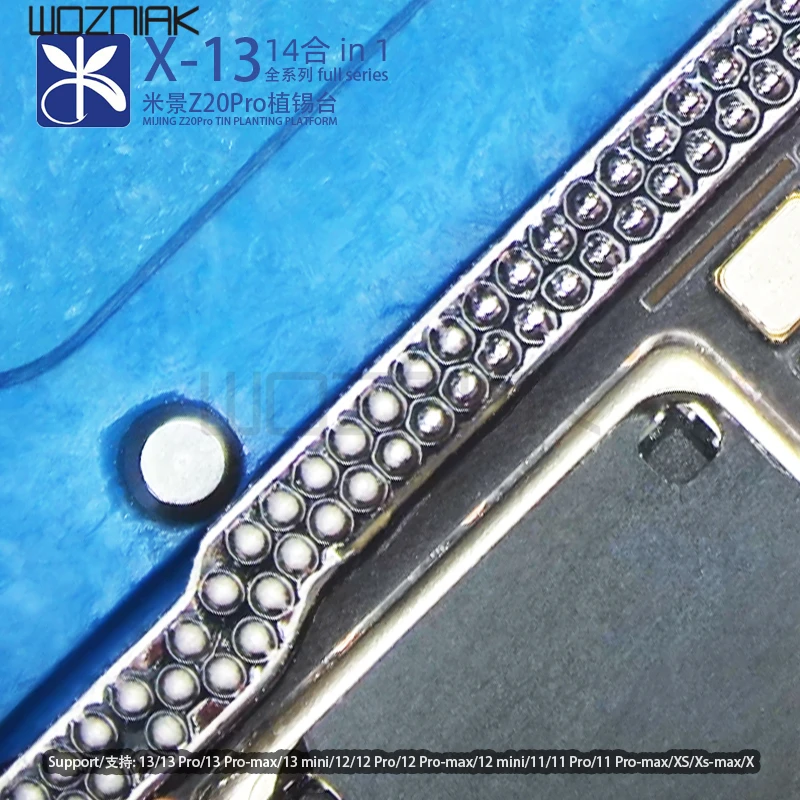

Install the iPhone X-13/13 Pro main board on the platformCover the iPhone X-13/13Pro BGA reballing stencil on mainboardEvenly spread tin on the cover of the reballing stencilRemove the reballing stencil coverTake out the motherboard and cooperate with the hot air gun to solidify the tin point.
Packing List :

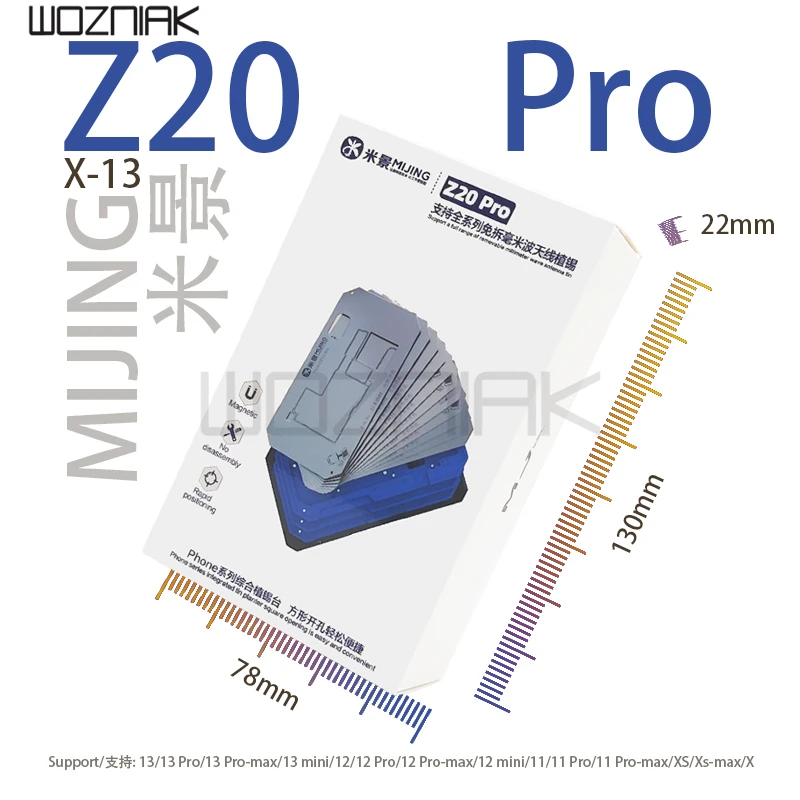

1pc x MiJing Z20pro Jig Fixture
