- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- AC Voltage: 500mV to 750V
- Display Type: Digital display
- DC Voltage: 50mV to 1000V
- AC Current: 500uA to 500mA;5A to 10A
- Measuring Resistance Range: 500ohm to 50Mohm
- Certification: CE
- DC Current: 500uA to 10A
- Measuring Capacitance Range: 50nF to 50mF
- Operating Mode: Manual or Auto
- Model Number: XDM1041
- Is Smart Device: No
- Dimensions: 200×86.5x64mm
- Operating Temperature: 0 – 40 ℃
Buyer Show:
We support dropshipping and whole sale. If you want to learn more,just contact with us directly!

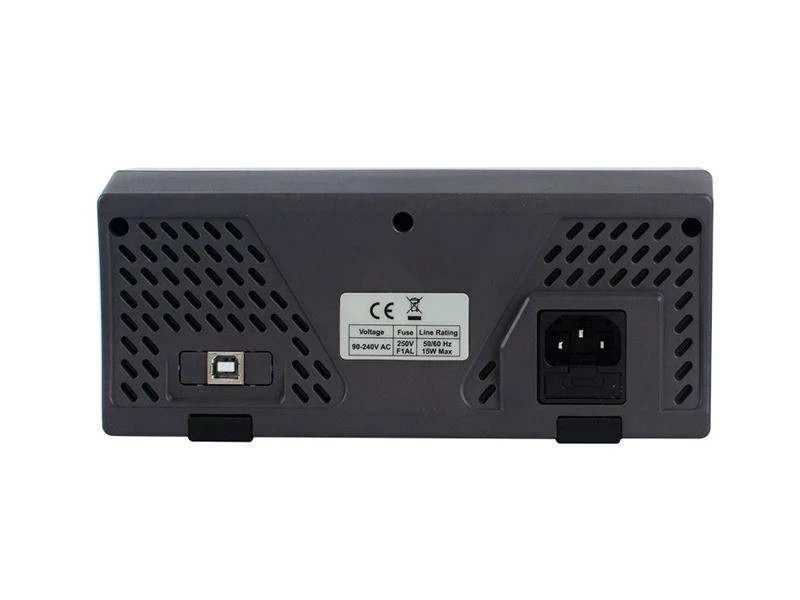

OWON 4 1/2 Digits XDM1041 Bench-Type Digital Multimeter
+ 3.5 inch (480×320) high resolution LCD
+ 55000 counts, DC voltage accuracy up to 0.05%
+ Up to 65 readings per second
+ True RMS AC voltage / current measurement
+ Dual line display supported
+ Trend analysis accessible in chart mode
+ SCPI support
+ Data record function, you can record the measured data into internal memory, and then read and process the recorded data with your computer
Specifications:
|
|
Resolution |
Accuracy±(% of reading + % of range) |
|
|
DC Voltage |
50.000mV |
0.001mV |
0.1%+10 |
|
500.00mV |
0.01mV |
0.05%+5 |
|
|
5.0000V |
0.0001V |
0.05%+5 |
|
|
50.000V |
0.001V |
0.05%+5 |
|
|
500.00V |
0.01V |
0.1%+5 |
|
|
1000.0V |
0.1V |
0.1%+10 |
|
|
AC Voltage |
500mv-750v |
20Hz～45Hz |
1% + 30 |
|
45Hz～65Hz |
0.5% + 30 |
||
|
65Hz～1KHz |
0.7% + 30 |
||
|
DC Current |
500uA |
0.01uA |
0.15%+20 |
|
5000uA |
0.1uA |
0.15%+10 |
|
|
50mA |
0.001mA |
0.15%+20 |
|
|
500mA |
0.01mA |
0.15%+10 |
|
|
5A |
0.0001A |
0.5%+10 |
|
|
10A |
0.001A |
0.5%+10 |
|
|
AC Current |
500uA-500mA |
/ |
0.5%+20 |
|
5A-10A |
1.5%+20 |
||
|
Resistance |
500Ω |
0.01Ω |
0.15%+10 |
|
5KΩ |
0.0001KΩ |
0.15%+5 |
|
|
50KΩ |
0.001KΩ |
0.15%+5 |
|
|
500KΩ |
0.01KΩ |
0.15%+5 |
|
|
5MΩ |
0.0001MΩ |
0.3%+5 |
|
|
50MΩ |
0.001MΩ |
1%+10 |
|
|
Measurement Range |
Resolution |
Accuracy±(% of reading + % of range) |
|
|
Frequency |
10.000Hz–60MHz |
/ |
±(0.2%+10) |
|
Capacitance |
50nF-500uF |
/ |
2.5%+5 |
|
5mF-50mF |
5%+10 |
||
|
Diode |
3.0000 V |
0.0001V |
/ |
|
Continuity |
1000 Ω |
0.1Ω |
Adjustable threshold |
|
Temperature |
K type，PT100 |
||
|
Max Display |
55,000 counts |
||
|
Data-logging Function |
|||
|
Logging Duration |
15ms-9999.999s |
||
|
Logging Length |
1,000 points |
||
|
General |
|
|
Display Screen |
3.5- inch TFT LCD with resolution 480*320 |
|
Dimensions (W×H×D) |
235 x 88x 65 (mm) |
|
Device Weight |
Approximately 0.45kg |
- We provide high quality product and excellent service
- we have 12 months’ warranty, if you need any help,just contact with us directly, we are always behind of you!
Package content:
1xMultimeter
1xPower Cord
1xUSB Cable
1xMultimeter Lead
1x Fuse
1xQuick Guide
