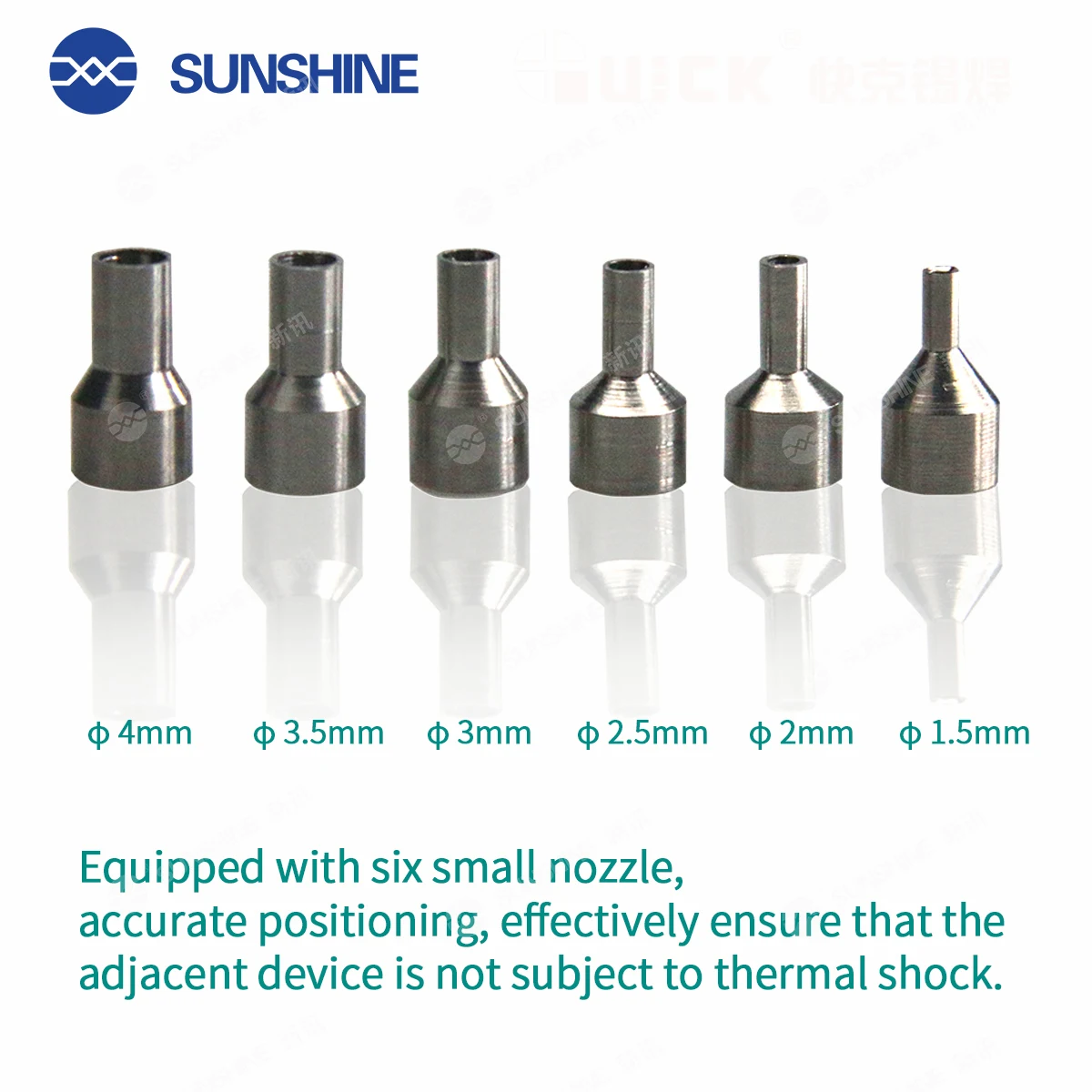

quick tr1100 200W hot air gun desoldering station with 6 nozzles, rapid heating,auto sleep,ceramic heating core,ESD detection

quick tr1100 200W hot air gun desoldering station with 6 nozzles, rapid heating,auto sleep,ceramic heating core,ESD detection

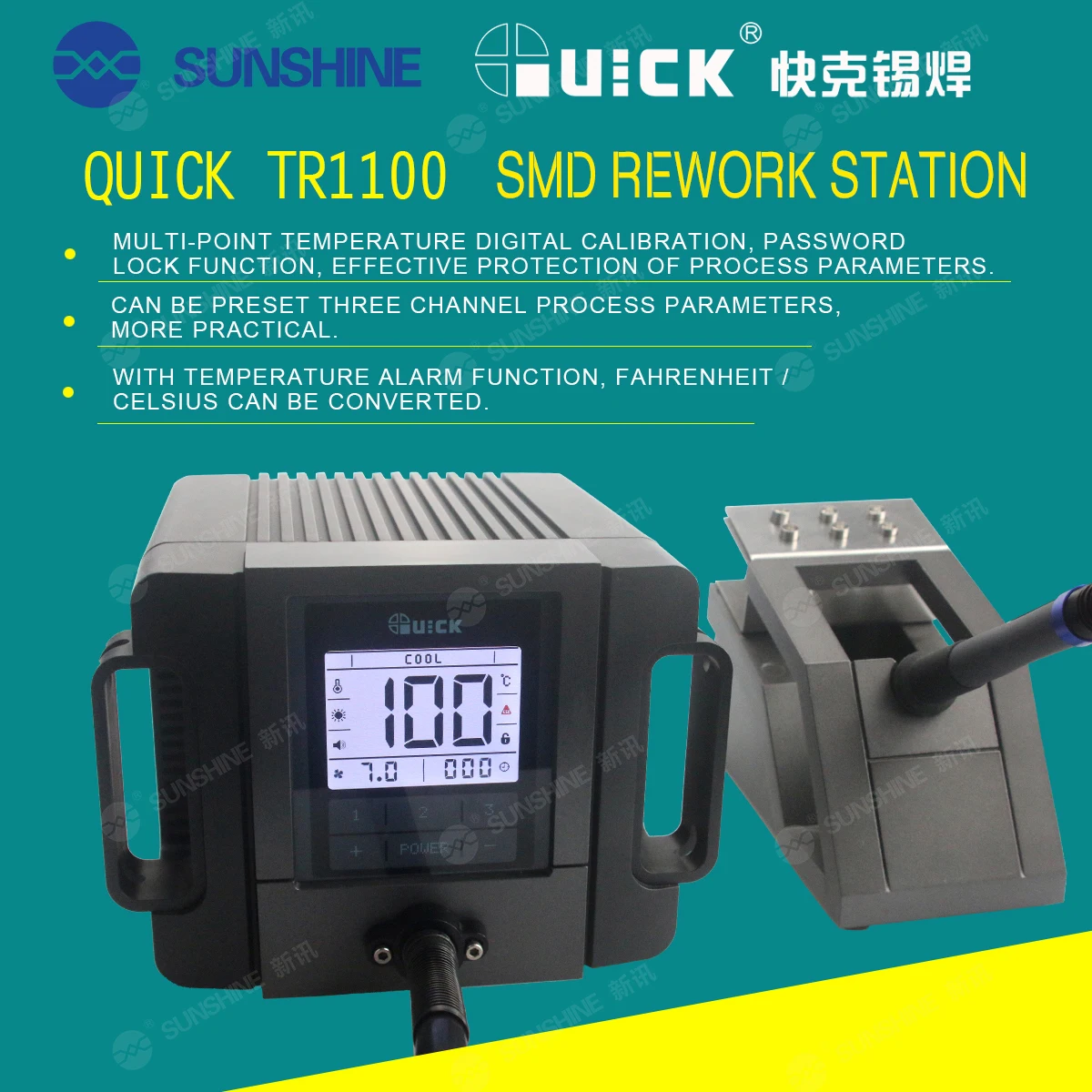

QUICK TR1100 SMD rework station Features

1. Multi-point temperature digital calibration, password lock function, effective protection of process parameters.
2. Can be preset three channel process parameters, more practical.
3. With temperature alarm function, Fahrenheit / Celsius can be converted.

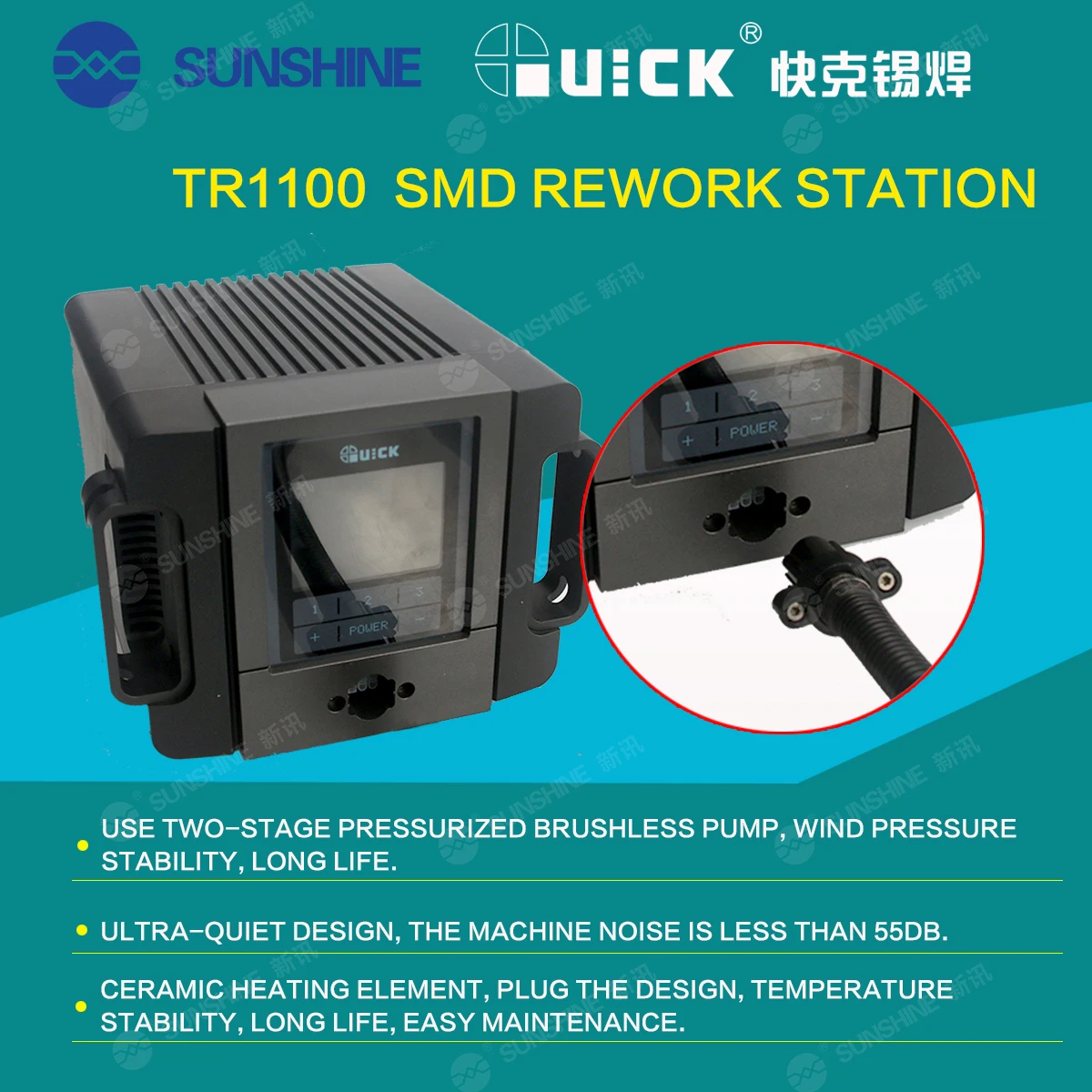

4. Use two-stage pressurized brushless pump, wind pressure stability, long life.
5. Ultra-quiet design, the machine noise is less than 55dB.
6. Ceramic heating element, plug the design, temperature stability, long life, easy maintenance.

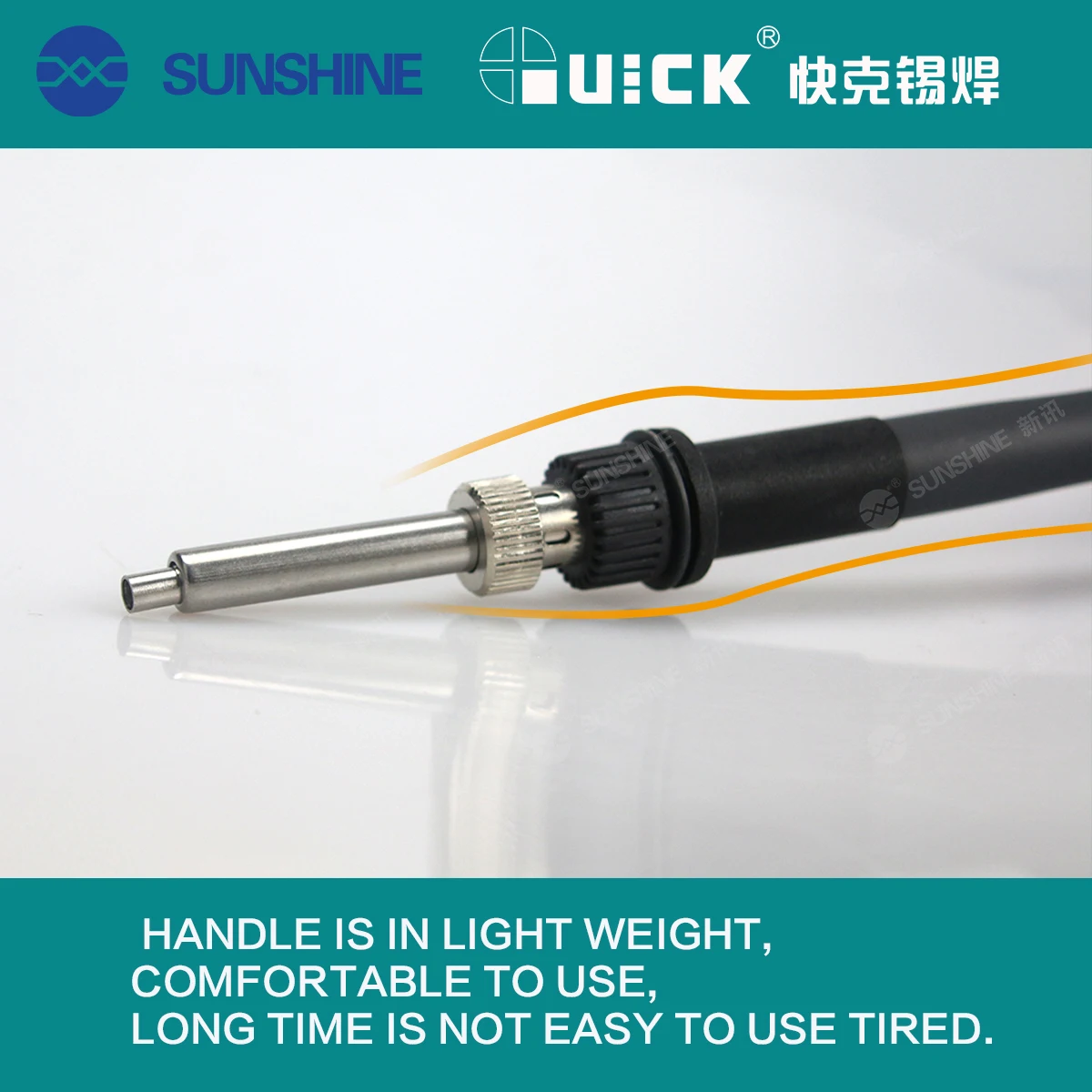

7. Handle is in light weight, comfortable to use, long time is not easy to use tired.

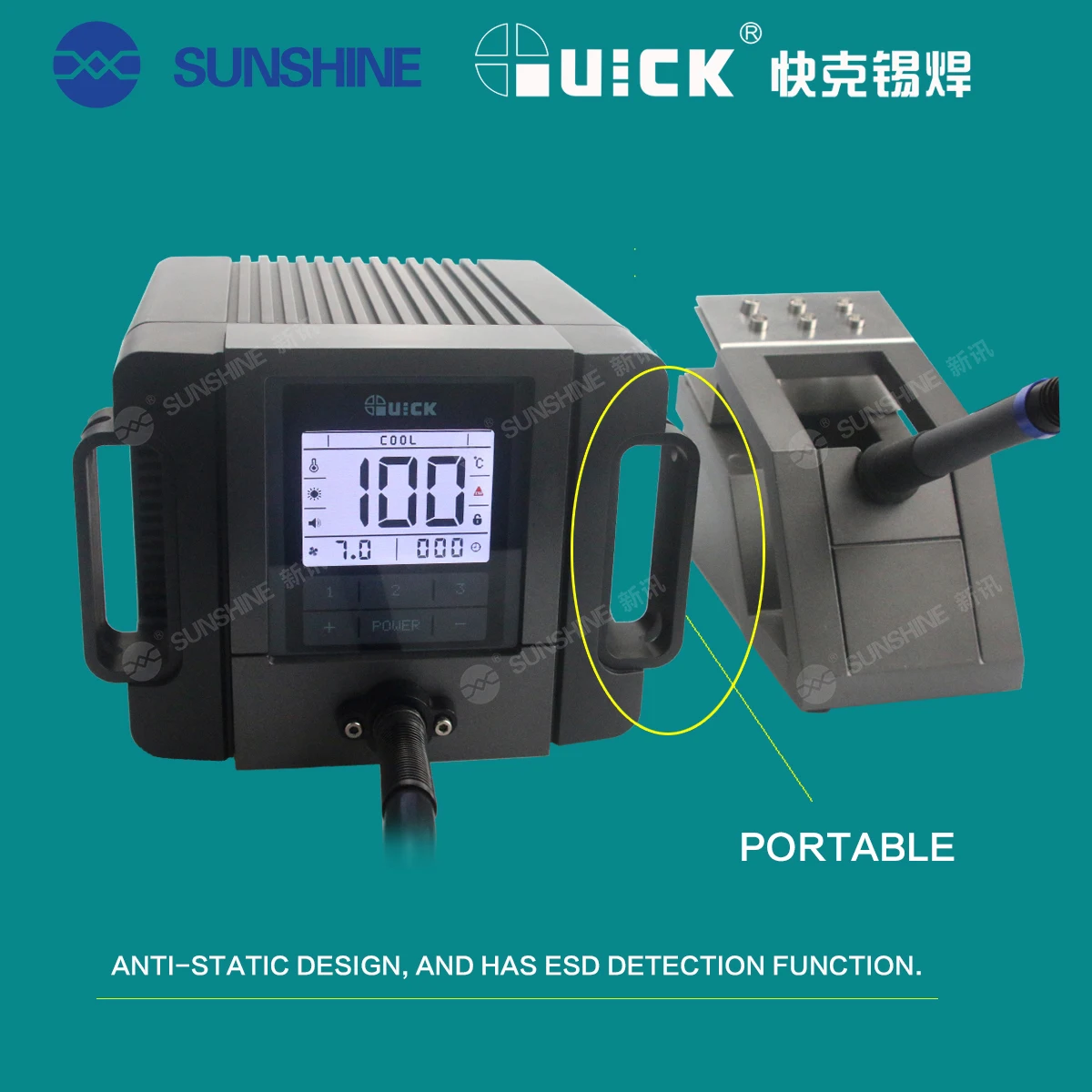

8. Anti-static design, and has ESD detection function.
9. Auto Sleep
10. Protection function (after a sudden power failure, it will not automatically heat up without confirmation to ensure safety)

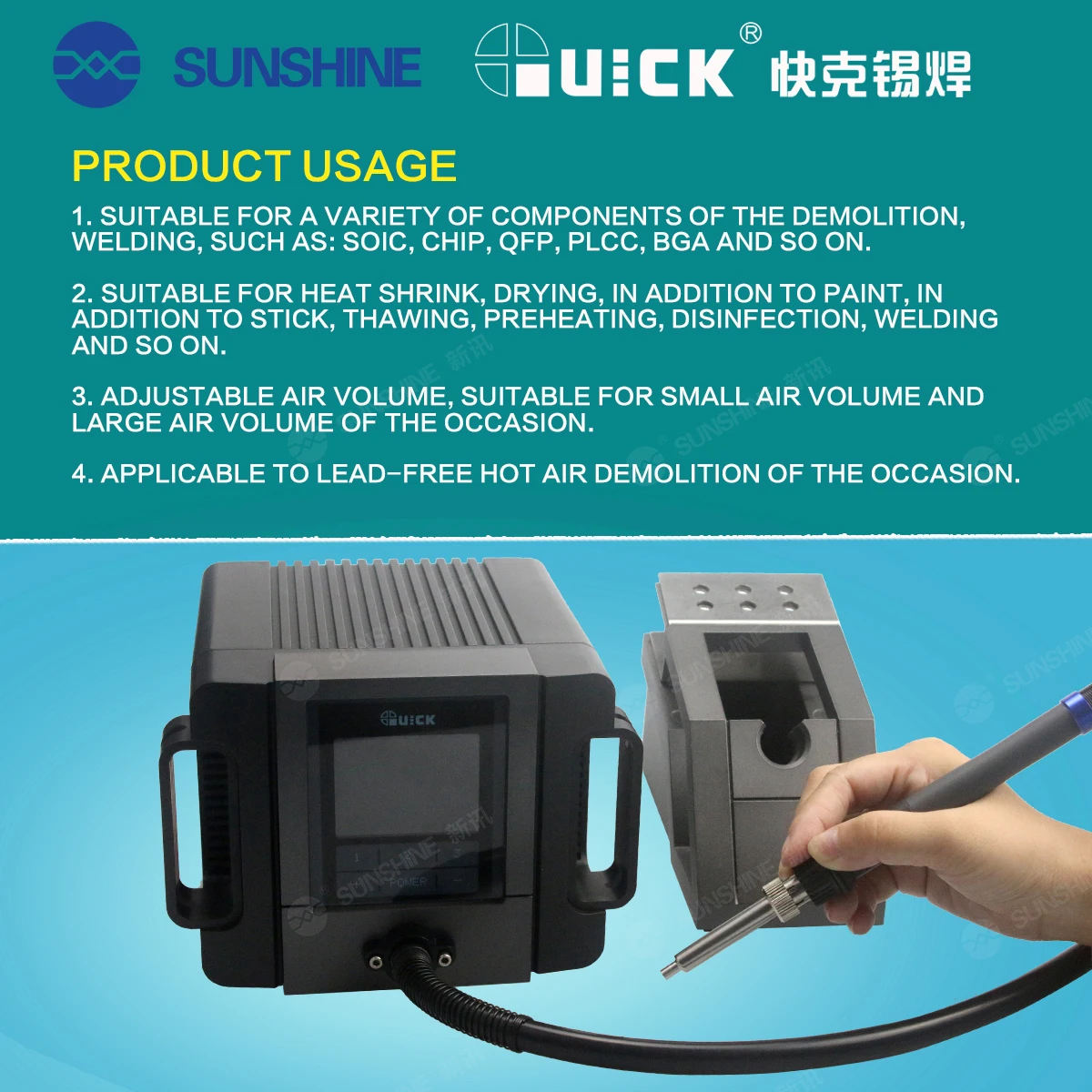

Product Usage

1. Suitable for a variety of components of the demolition, welding, such as: SOIC, CHIP, QFP, PLCC, BGA and so on.
2. Suitable for heat shrink, drying, in addition to paint, in addition to stick, thawing, preheating, disinfection, welding and so on.
3. Adjustable air volume, suitable for small air volume and large air volume of the occasion.
4. Applicable to lead-free hot air demolition of the occasion.

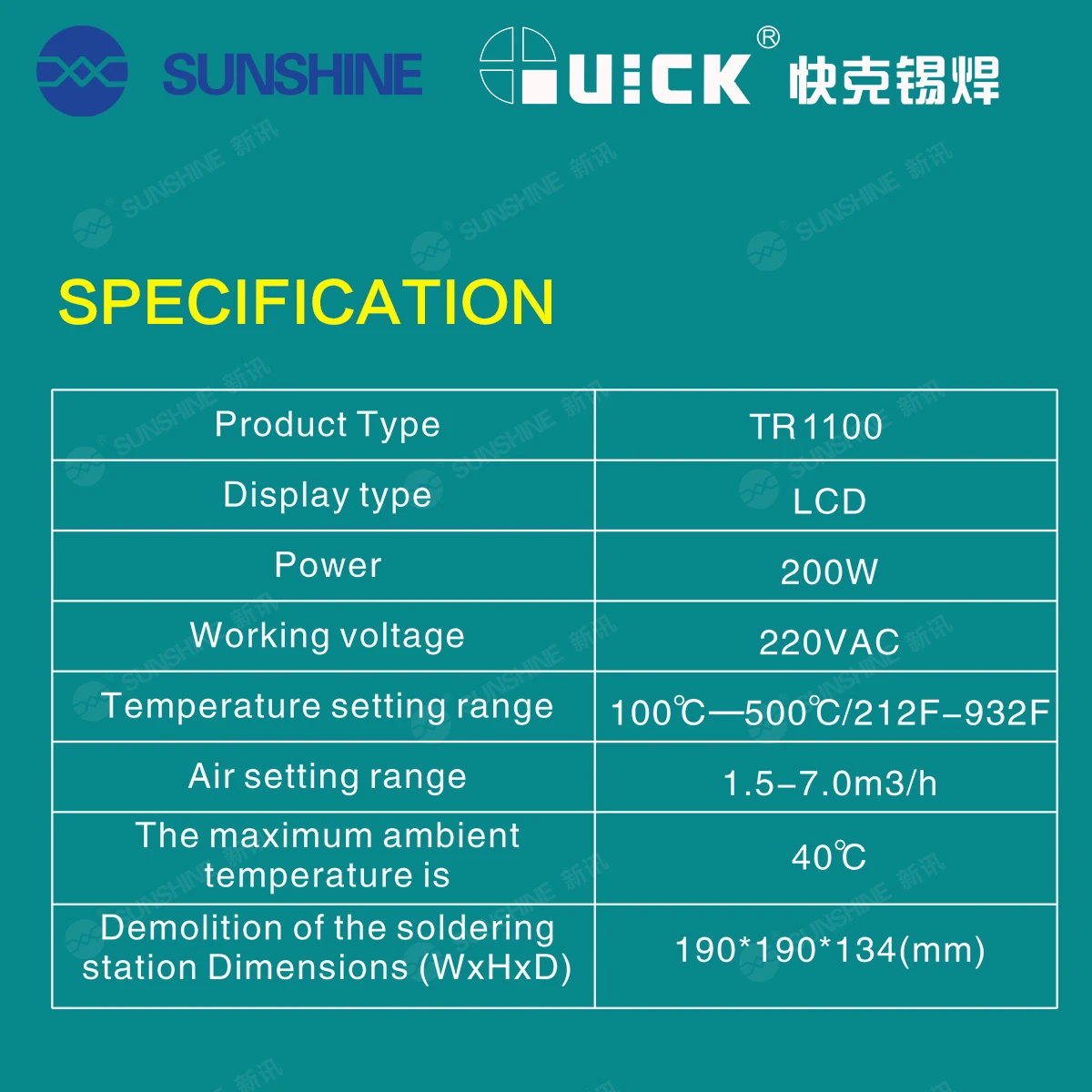

Specification

Product Type: TR1100
Display type: LCD
Power: 200W
Working voltage 220VAC
Temperature setting range 100 ℃ -500 ℃ / 212F-932F
Air setting range 1.5-7.0m3 / h
The maximum ambient temperature is 40 ℃
Demolition of the soldering station Dimensions (WxHxD) 190 * 190 * 134 (mm)
The temperature of the air nozzle is measured by a temperature tester.
The above specifications and design may be subject to change without notice.
