- Brand Name: WYLIE
- Origin: Mainland China
- Certification: CE
- Style: Handheld
- With Light Or Not: Yes
- Model Number: RF7050TVD2
- Light Source: Led Light
- Material: Plastic
- Warranty: 1 years
- Size: 43*33*25cm
- Product Name: RF7050TVD2 with 20B Base
- Feature: Beautiful and unique design, ultra wide Angle vision
- Objective: 0.7-5.0X
- Head: 45-degree inclined 360-degree swiveling trinocular
- Accessories: 144 adjustable led light & dust proof Lens
- Camera: Different models optional
- Usage: Mobile Phone Repair
- Eyepiece: WF10X/22MM
- Monitor and eyepiece: Synchronous zoomOverview

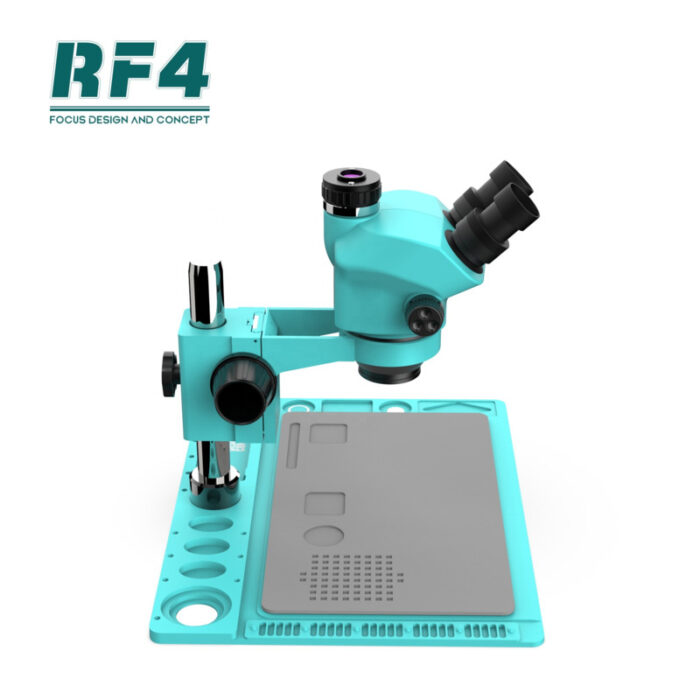

RF7050 with 20B Base Simul focal Trinocular Zoom Stereo Microscope Head synchronous Industrial Microscope 0.5x CTV Auxiliary Len
Magnification:continuous zoom 7X to 50X
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM
Barlow Lens: 0.5X & 0.7&2.0X(optional)
Objective: 0.7-5.0X
Camera connector：1/2ctv
Monitor and eyepiece. Synchronous zoom
Camera:Different models optional
Stand:410*300mm Accessories: 144 adjustable led light & dust proof Lens
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM
Barlow Lens: 0.5X & 0.7&2.0X(optional)
Objective: 0.7-5.0X
Camera connector：1/2ctv
Monitor and eyepiece. Synchronous zoom
Camera:Different models optional
Stand:410*300mm Accessories: 144 adjustable led light & dust proof Lens
Product Description
Microscopic structure
1 Eyepiece Shield
2 Eyepieces
3 Zoom Control Knob
4 Microscope Objective
5 silicone pad
6 Aluminium alloy base
7 Round Pillar
8 Focusing knob
2 Eyepieces
3 Zoom Control Knob
4 Microscope Objective
5 silicone pad
6 Aluminium alloy base
7 Round Pillar
8 Focusing knob
Support parameters
Column aperture: Φ32mmLens aperture: Φ76mmCenter distance: 155mmLifting range: 50mm
The base parameters
240mm φ32mm pillar410*300mm
Multifunctional aluminum alloy repair base
Expand silicone pad size：
330*198mm
330*198mm
Wide-angle eyepieces 10X/22
Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes
0.5X CTV
1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet.2The adapter ring can use LCD to focus, this kind of focus method is manual focus.3 The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming.4 Weight: 0.09kg.
Different eyepieces match different magnifications of the same objective lens
 |
 |
 |
 |
 |
 |
