- Origin: CN(Origin)
- Output Power: 80W
- Input Voltagle: AC200-240V-60HZ
- Output Temperature: 180-480
- Temperature Stability: -4
- Certification: NONE
- Model Number: SL-936D
- Working voltage 1: AC200-240V-60HZ
- Working voltage 2: 80W at constant temperature
- Plug: Three-pin plug, anti-leakage, anti-static
- Breakdown voltage: > 1200V
- Temperature range: 180℃-480℃
- Temperature calibration: ±4℃
- Tip Specifications: 936D heating core
- Tin melting time: 18-20 seconds
- Heating head replacement: direct plug-in (socket connection)
- Model: SL-936D
- Brand: SUNSHINE

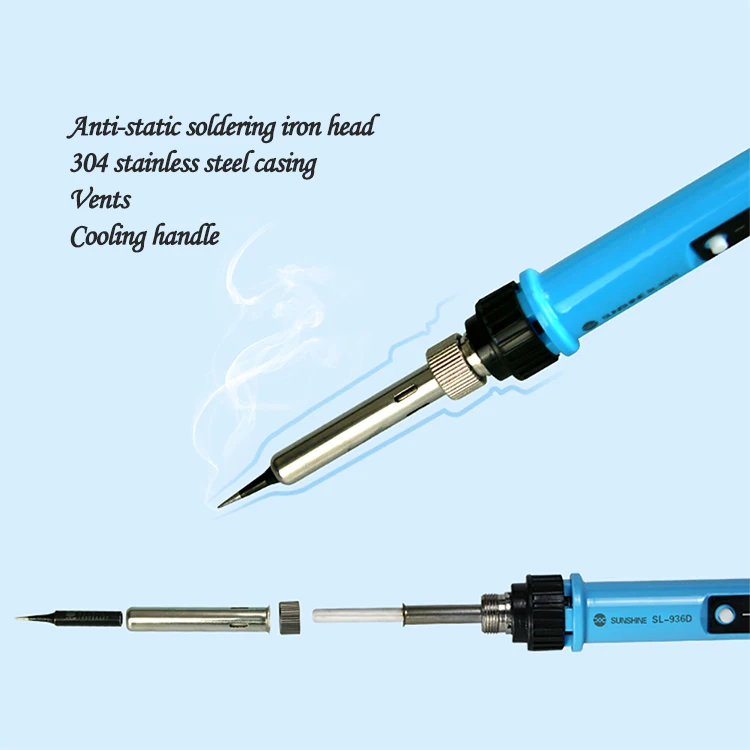

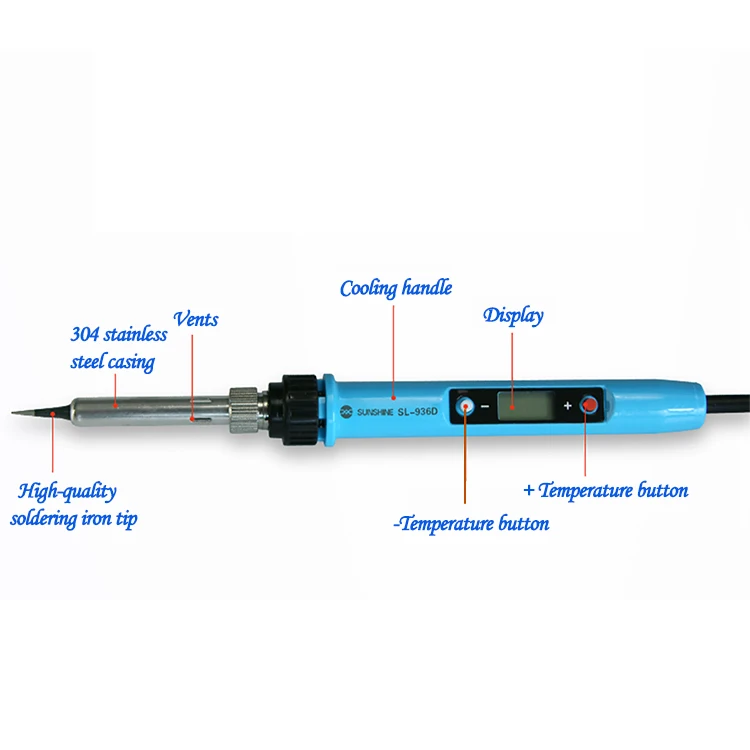

- Features 1: Anti-static soldering iron head
- Features 2: 304 stainless steel casing

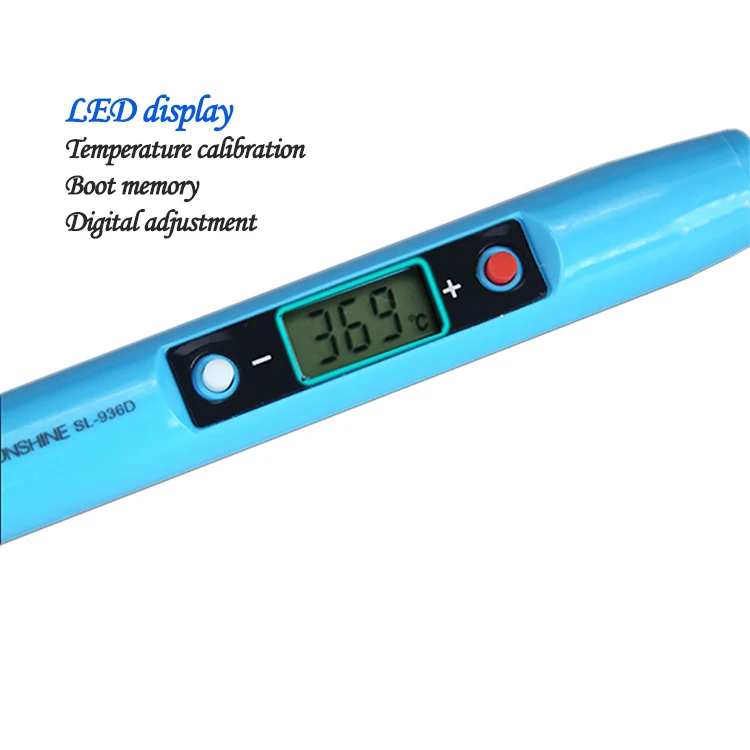

- Features 3: LED display
- Features 4: Temperature calibration
- Features 5: Boot memory
- Features 6: Digital adjustment
- Features 7: Digital high temperature soldering iron
- Features 8: Boot memory
- Welding Pen Mobile Phone Repair Tool: YES

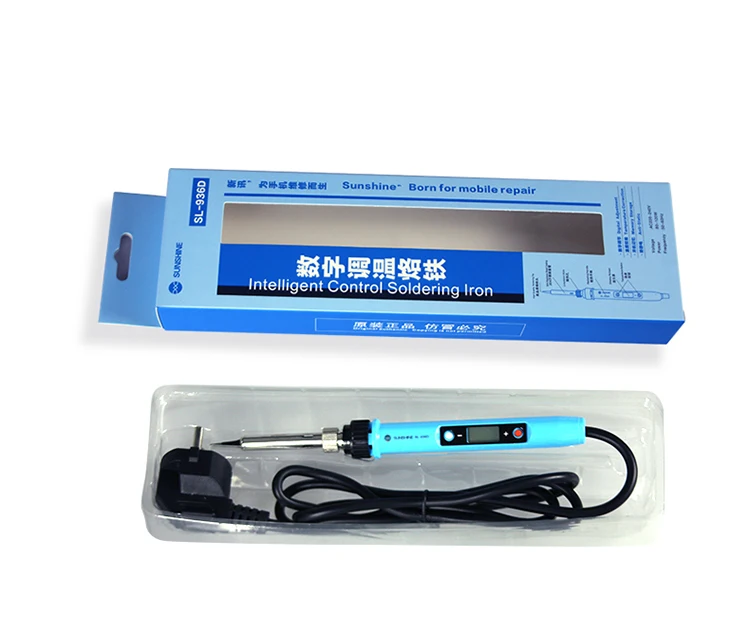

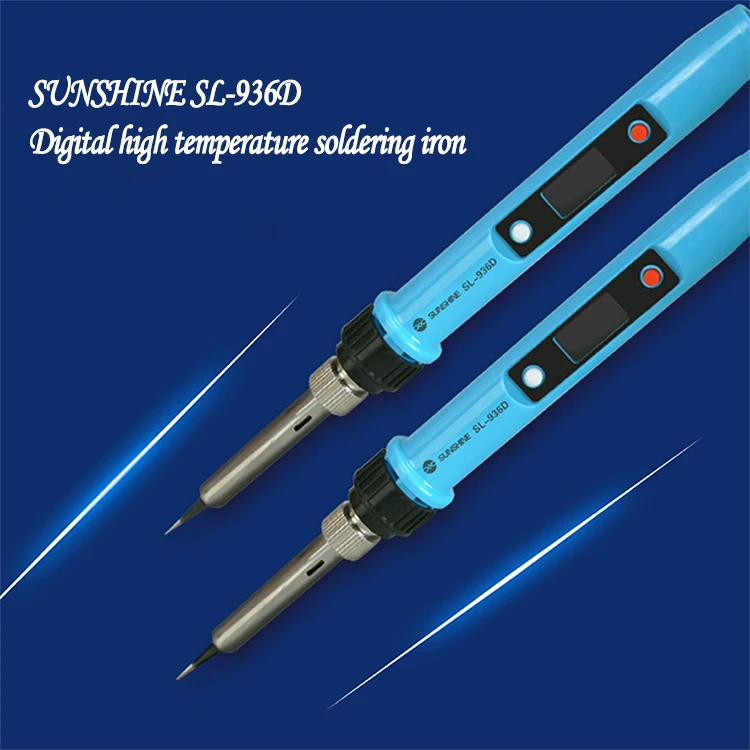

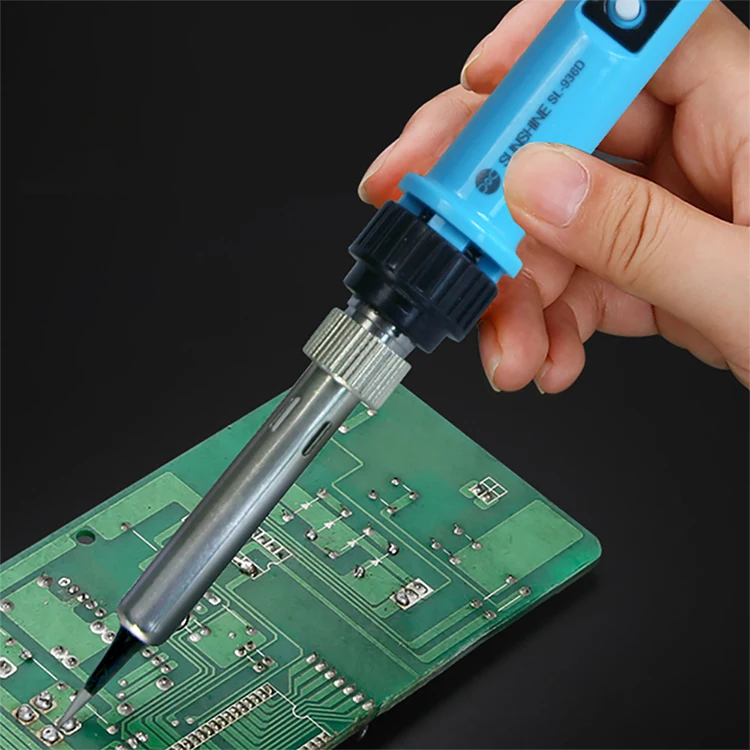

SL-936D 80W Adjustable Electric Soldering Iron Solder Wire PCB Welding Digital Constant Temperature Mobile Phone Repair Tool

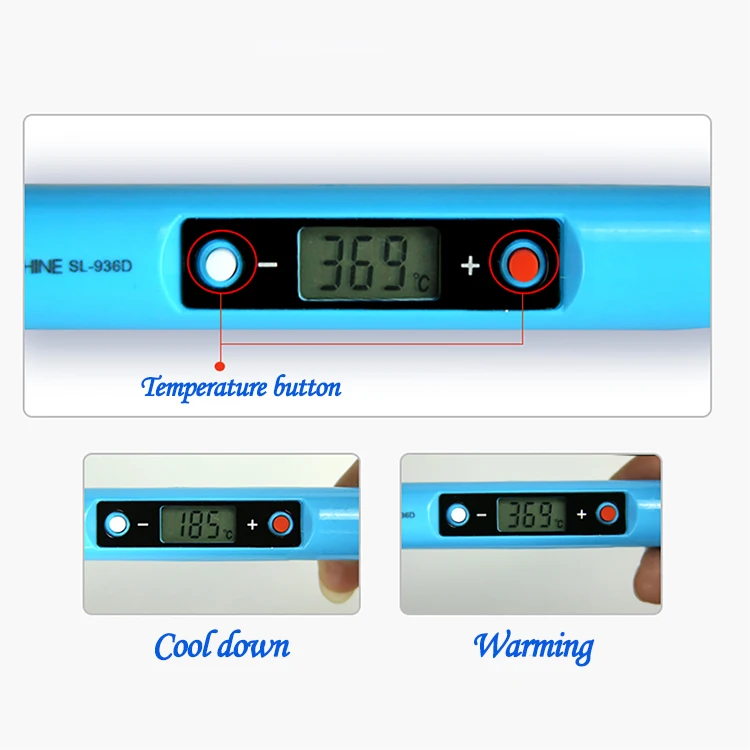

In the power-on state, release the red and white buttons after the LCD screen is displayed to enter the setting menu. At this time, the LCD displays “℃” or “℉”. Press the white button to select “℃” or “℉”.
Press the red and white buttons at the same time to save the setting and exit the setting menu. In order to ensure safety in the setting state, the soldering iron will stop heating, and it will start heating after exiting the setting menu.
Fault alarm: EUS power socket has bad contact, EAO heating core is open, E01 strong electromagnetic interference
