Origin: CN(Origin)
is_customized: Yes
Certification: CE
Certification: FCC
Model Number: SUGON 8620DX
Power: 1000W
Maximum air flow: 200L / min
Temperature range: 100-500°C / 212 ℉-932℉
SUGON 8620DX 1000W Hot Air Rework Station Microcomputer Temperature Control BGA Rework Station Curved nozzle Welding Repair
1.Dear customer, thank you for visiting our store. We will chooseDHL or TNT or UPS or Fedexdepending on your country and region. Even if you choose any of them, I will choose a more suitable, faster and more secure logistics delivery, and I hope you understand.
2. When the product reaches your local custom, they may ask for custom tax, it is the receiver’s responsibility to pay for the import custom tax, it is not claimed in time, the return fee will be paid by the receiver, thanks for your understanding.
3. Before Shipping, our professional and experienced warehouse colleagues will check test and pack it well. Don’t worry.
4.At the time of purchase, please confirm whether your delivery address belongs to a remote area. If it belongs, there will be additional costs that need to be paid by the buyer. If you have any questions, you can contact the seller.
Aviso:
Para los usuarios de la Unión Europea, el precio de almacén español ya incluye el impuesto adicional, y no es necesario pagar el impuesto al recibir la mercancía.
For US users, the seller will automatically ship the goods from the US warehouse, and the package will be received within 1-3 days.
Note:
The entire machine parts have been upgraded, and the air volume control has been increased by 80%. Current air volume speed adjustment 1-200.
Temperature range:100℃-500℃(212℉-932℉)
Features:
1.It has four working channels: CH1, CH2, CH3, CH4, and The air volume and temperature of each channel can be set and stored.
2. It has a variety of protection functions and perfect button functions.
3.Convenient real-time operation, with magnetic switch control, the handle is placed in the hand The handle frame immediately goes to sleep.
4.With automatic sleep function, the parameters can be adjusted in the sleep state Set up.

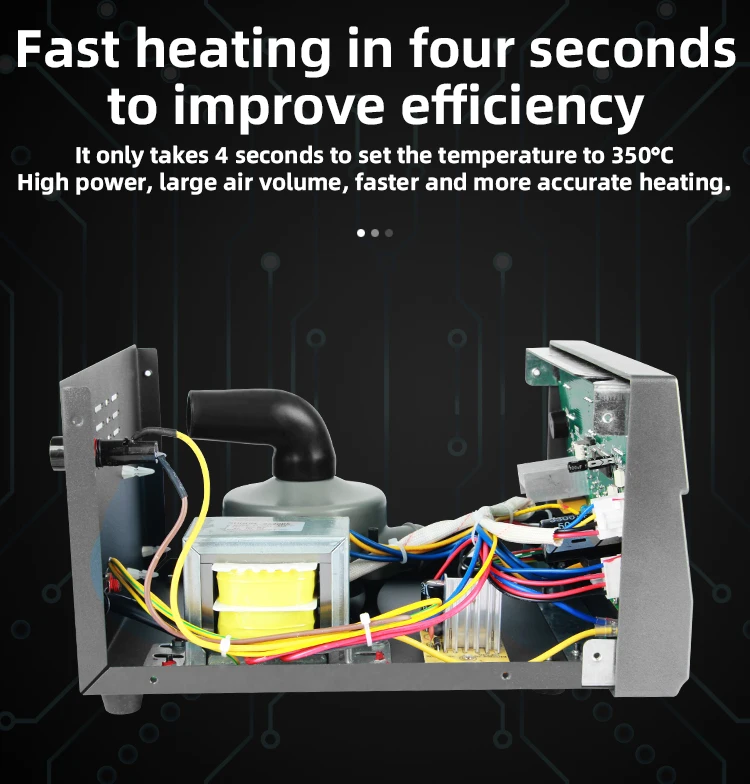

5.Sensor closed loop, microcomputer zero crossing trigger temperature control, high power,The temperature rises quickly, and the temperature adjustment is convenient and accurate and stable, and is not affected by the air output.
6.Using brushless vortex fan, the air flow is adjustable, the range is large, and it can be suitable Should be used for multiple purposes.
7.The system is equipped with automatic large air volume cooling function to extend the life of the heating element, Protect the hot air handle.
8. Real-time ℃/℉ temperature display function.
9. Has the function of self-calibration of temperature.
Use:
1. Suitable for disassembly and soldering of a variety of components, such as: SOIC, CHIP, QFP,PLCC, BGA, etc.
2. Suitable for heat shrinkage, drying, paint removal, debonding, thawing, preheating, disinfection,Glue welding, etc.
3. The air volume is adjustable, suitable for fields that require small air volume and large air volume heatingTogether.
4. Suitable for lead-free hot air desoldering occasions.
Quick operation:

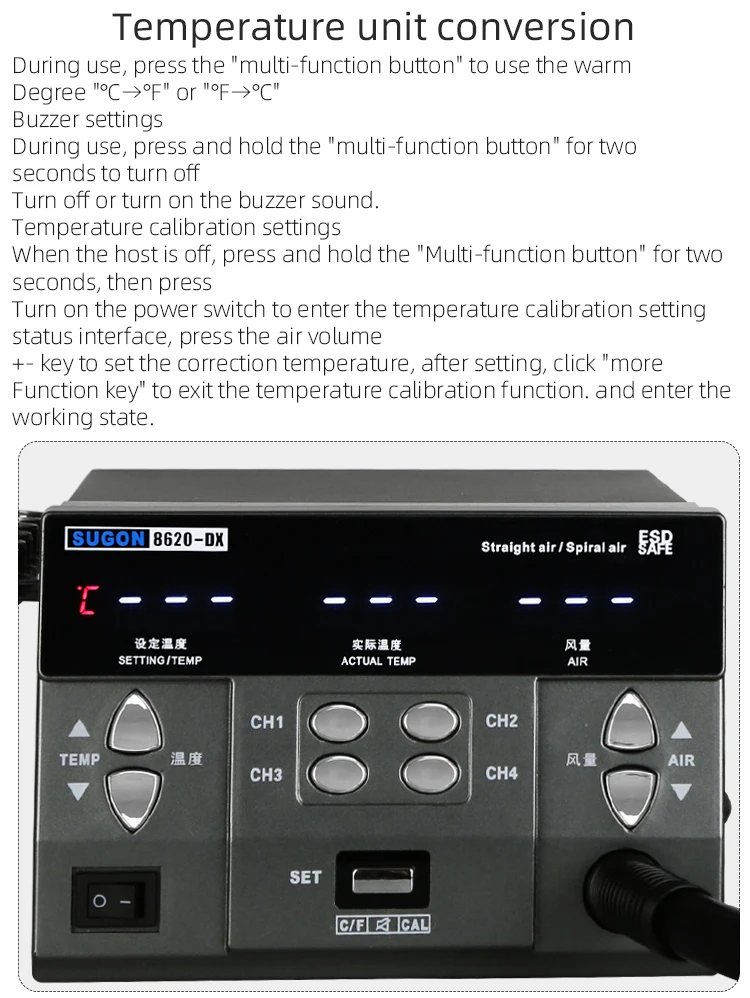

Temperature unit conversion
During use, press the “multi-function button” to use the warm
Degree “℃→℉” or “℉→℃”.Buzzer settingsDuring use, press and hold the “multi-function button” for two seconds to turn off Turn off or turn on the buzzer sound.
Temperature calibration settings When the host is off, press and hold the “Multi-function button” for two seconds, then press Turn on the power switch to enter the temperature calibration setting status interface, press the air volume +- key to set the correction temperature, after setting, click “more Function key” exits the temperature calibration function and enters the working state.
Note that the product is not equipped with curved nozzles!
Package:

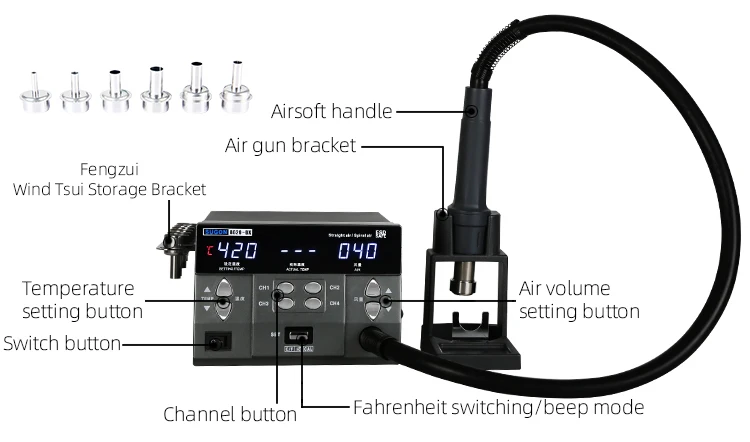

1 x SUGON 8620DX （AC 220V / AC 110V ）
1 x Air gun stand

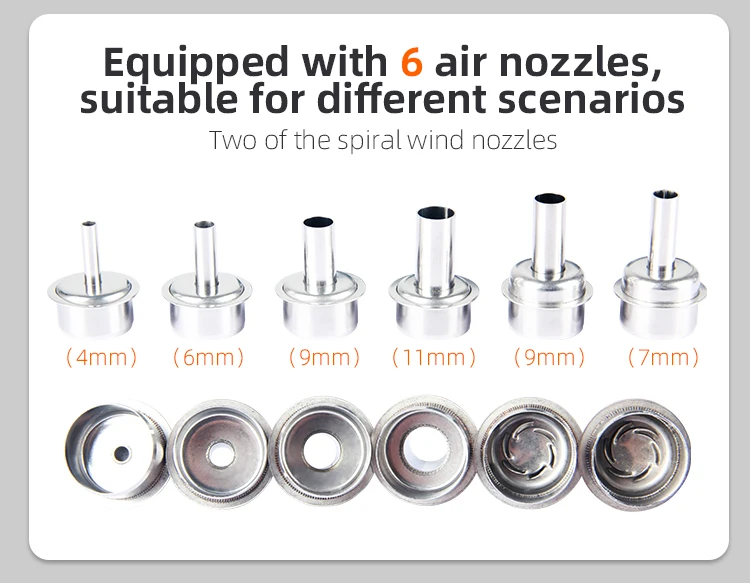

4 x Nozzle
2 x Spiral nozzle
1 x Ceramic Heating Core（Gift）
1 x Grounding wire
1 x 6 languages manual
