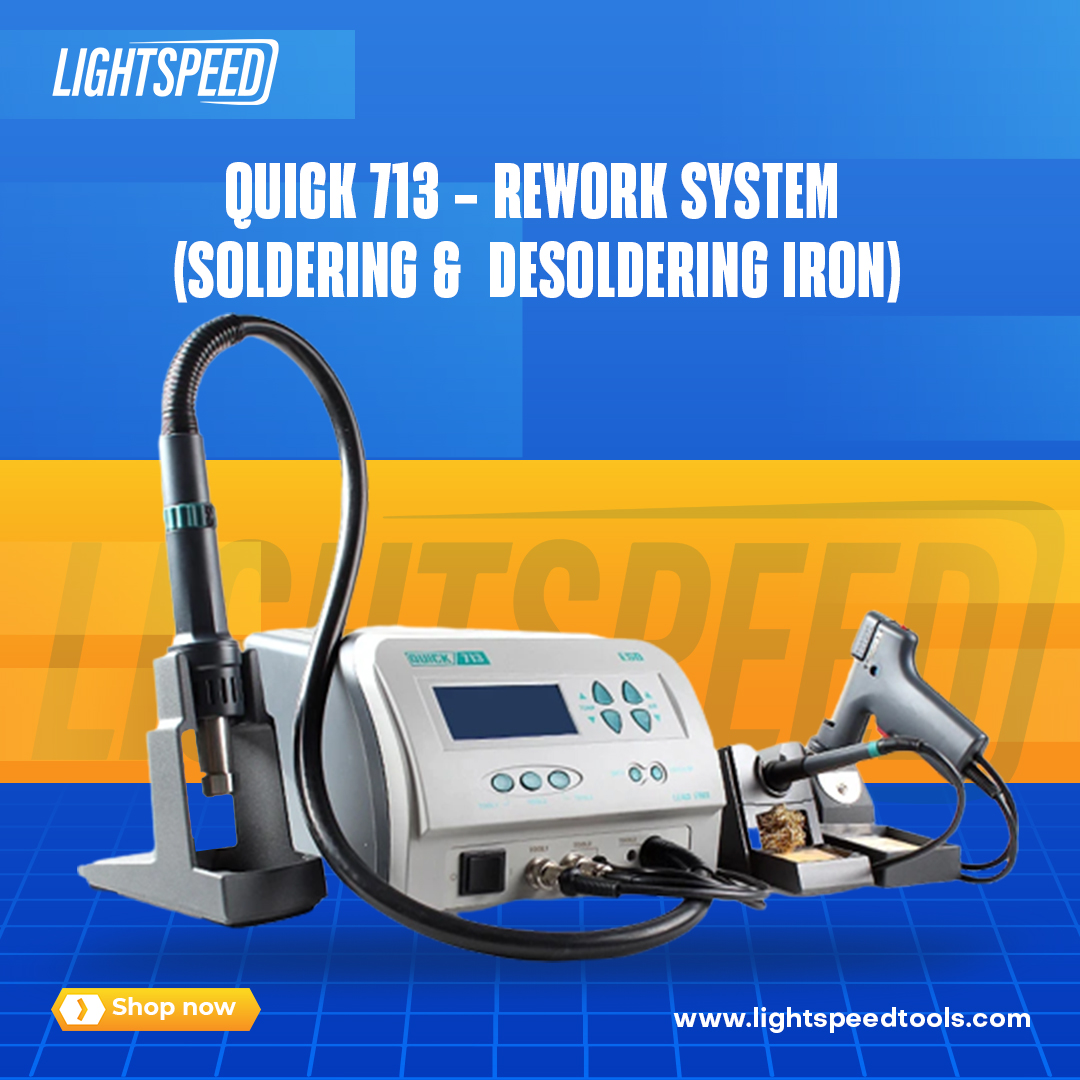

The Quick 713A is a three-channel rework system with soldering, de-soldering and hot air functionality. The 713A features an internal pump and does not require an external source of compressed air to operate.
The soldering portion of the 713A offers 90 watts of heating power, with a temperature range of 125-930°F and stability of ±2°. Many different tip sizes and geometries are also available, making it suitable for a variety of applications.
The hot air section features a 1000 watt handpiece, with a temperature range of 215-930°F. Air volume is adjustable between 1-120 L/min, with several dozen nozzles also available. Nozzles are available in many different sizes and designed for use with a variety of package types, including QFP, SOP, BGA and many more. The hot air handle also features a built-in vacuum pen.
The 713A also contains a 90 watt de-soldering handpiece, with vacuum pressure of 600mmHG. It features easily changed filters for quick removal of solder and flux, making it not only affordable, but user friendly.
Specifications:
| Soldering section | QUICK713 |
| Power | 90W |
| Temperature range | 200- 480℃ |
| Sleeping temperature range | 200℃ |
| Sleeping time range | 0- 99 min |
| Temperature stability | ±2 ℃ (Stationary air, no load) |
| Ambient temperature(Max) | 40 ℃ |
| Tip to ground resistance | < 2Ω |
| Weight | About 8.1 kg |
| Rework section | Specifications |
| Power | 1000W |
| Temperature range | 100- 500 ℃ |
| Air volume | 1-120 Class |
| Ambient temperature(Max) | 40 ℃ |
| Temperature stability | ± 2 ℃ (Stationary air, no load) |
| De-soldering section(Only for QUICK713) | Specifications |
| Heating power | 90W |
| Temperature range | 200 – 480 ℃ |
| Pump | Diaphragm type |
| Vacuum pressure | 600 mmHg |
| Sleep time range | 1-99 mins |
Features:
- Password lock function facilitates the temperature parameters control.
- Temperature adjustment by button, auto sleep/ OFF function available.
- Brushless vortex fan, steeples and wide range of air volume, suitable for various applications.
- An automatic cooling system can prolong the lifetime of heating element and protect the hot air handle.
- Precise temperature controlled by closed-loop sensor.
Product advantages:
- Digital temperature calibration, easy operation.
- Built-in suction pen in the hot air handle, easy to use.
- Built-in vacuum pump, powerful suction, no need of external vacuum system.
- Light soldering iron handle, easy to use.
- The low weight of the stocks translates into the comfort of use.
Parameters and packaging:
- Quick 713 station, stock support set, power cord
- NK-850 – nozzle adapter adapter, set of filters, a set of suction nozzles
- tip 700A-2B
- user manual
- Weight approx. 8.1 kg
