- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- is_customized: No
- Model Number: RF6565TV
- Certification: CE
- Package: BOX
- Type: microscope
- Application: Computer Tool Kit
- Customized support: OEM, ODM, OBM
- Product name: RF6565TV Trinocular Microscope
- Objective: 6.5X to 65X
- Eyepiece: WF10X/22MM
- Head: 45-degree inclined 360-degree swiveling trinocular
- Camera connector: 1/2ctv
- Accessories:: 144 adjustable led light & dust proof Lens
- Monitor and eyepiece: Synchronous zoom
- Camera: Different models optional
- Light source: 144 adjustable led light

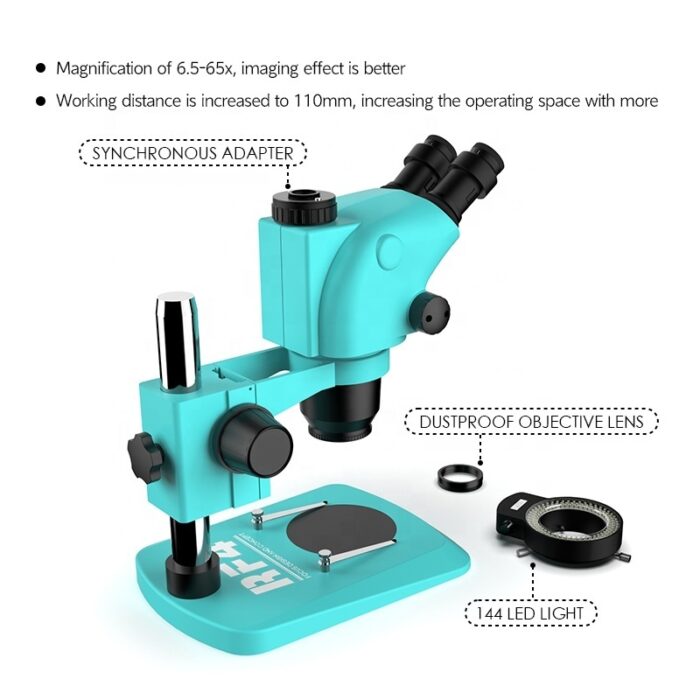

RF6565TV 6.5X to 65X Synchronous zoom stereo Microscope Trinocular Microscope With 144 LED light For Jewelry welding
Magnification:big continuous zoom 6.5X to 65X
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM Adjust the focal
Barlow Lens: 0.5X & 0.7&2.0X(optional)
Objective: 0.65-6.5X
Camera connector：1/2ctv
Monitor and eyepiece. Synchronous zoom
Camera:Different models optional
Boom Stand: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate
Accessories: 144 adjustable led light & dust proof Lens
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM Adjust the focal
Barlow Lens: 0.5X & 0.7&2.0X(optional)
Objective: 0.65-6.5X
Camera connector：1/2ctv
Monitor and eyepiece. Synchronous zoom
Camera:Different models optional
Boom Stand: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate
Accessories: 144 adjustable led light & dust proof Lens
Product Description
Microscopic structure
1 Eyepieces glass 2 Adjustable Eyepieces 3 Zoom Control Knob 4 objective lens5 clip6 black and white plate7 Base8 Focusing knob 9Round Column10Head
Support parameters
Column aperture: Φ32mmLens aperture: Φ76mmCenter distance: 155mmLifting range: 50mm
The base parameters
Column height: 240mmDiameter：φ32mm Equipped with pressing tabletand Φ95mm black and white plateBase: 200 x255x22mm
Wide-angle eyepieces 10X/22
Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Ajustable Eyepiece Lens，Suit for Stereo Microscope.
0.5X CTV
1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet.2The adapter ring can use LCD to focus, this kind of focus method is manual focus.3 The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming.4 Weight: 0.09kg.
Different eyepieces match different magnifications of the same objective lens
 |
 |
 |
 |
 |
 |
