- Brand Name: WYLIE
- Magnification Ratio: 500X – 1500X
- Origin: Mainland China
- Theory: Stereo Microscope
- Model Number: RF7050TVP-YS010W
- Is Smart Device: YES
- Features: Digital
- Certification: CE,WEEE
- Material: Metal
- Drawtube: Trinocular
- Customized support: OEM, ODM, OBM
- Objective: 7-50X
- Eyepiece: WF10X/22mm
- Head: 45-degree Inclined 360-degree Swiveling Trinocular
- Camera connector: 1/2ctv
- Accessories:: 144 adjustable led light & dust proof Lens
- Monitor and eyepiece: Synchronous zoom
- Light source: 144 adjustable led light

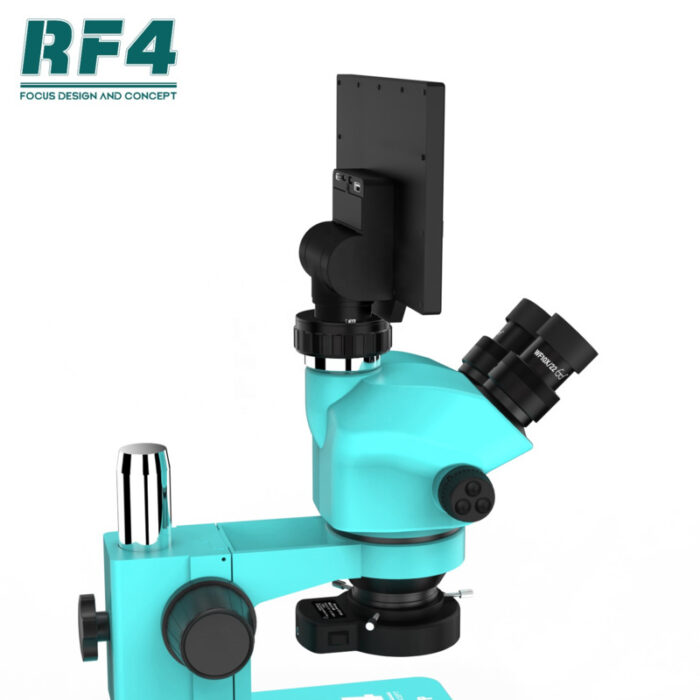

RF4 Microscope Jewelry Inlaid observation Beginner Maintenance Engineer Academic Stereoscopic Microscope
Magnification:big continuous zoom 7X to 50X
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM Adjust the focal
Barlow Lens: 0.5X & 0.7&2.0X(optional)
Objective: 7-50X
Camera connector：1/2ctv
Monitor and eyepiece. Synchronous zoom
Camera:Different models optional
Accessories: 144 adjustable led light & dust proof Lens
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM Adjust the focal
Barlow Lens: 0.5X & 0.7&2.0X(optional)
Objective: 7-50X
Camera connector：1/2ctv
Monitor and eyepiece. Synchronous zoom
Camera:Different models optional
Accessories: 144 adjustable led light & dust proof Lens
Product Description
Support parameters
Column aperture: Φ32mmLens aperture: Φ76mmCenter distance: 155mmLifting range: 50mm
The base parameters
Column height: 240mmDiameter：φ32mm Base:380 x260mm
Wide-angle eyepieces 10X/22
Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Ajustable Eyepiece Lens，Suit for Stereo Microscope.
0.5X CTV
1The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet.2The adapter ring can use LCD to focus, this kind of focus method is manual focus.3 The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming.4 Weight: 0.09kg.
Pixels: 16MP
Monitor size:10 inch
Output: HDMI+wifiCan output larger size monitor
 |
 |
 |
 |
 |
 |
