- Origin: Mainland China
- Model Number: RF7050
- Light Source: Led Light
- Certification: CE,WEEE
- Material: Plastic
- Style: Handheld
- With Light Or Not: Yes
- Warranty: 1 years
- Size: Customized Designs
- Product Name: RF7050 Diamond Stereo Swiveling Binocular Microscope
- Feature: Beautiful and unique design, ultra wide Angle vision
- Objective: 0.7-5.0X
- Head: 45-degree inclined 360-degree swiveling Binocular
- Accessories: 144 adjustable led light & dust proof Lens
- Camera: Can’t Match
- Usage: Mobile Phone Repair
- Eyepiece: WF10X/22MM
- Monitor and eyepiece: continuous zoom
Overview
RF7050 Diamond Stereo Swiveling Binocular Microscope Industry Factory Microscope For PBC Laptop Hardware Repair
Magnification:continuous zoom 7X to 50X
Head: 45-degree inclined 360-degree swiveling binocular
Eyepiece: WF10X/22MM
Barlow Lens: 0.5X & 0.7&2.0X(optional)
Objective: 0.7-5.0X
Camera connector
Monitor and eyepiece. Synchronous zoom
Camera: Can’t add camera
Boom Stand: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate
Accessories: 144 adjustable led light & dust proof Lens
Head: 45-degree inclined 360-degree swiveling binocular
Eyepiece: WF10X/22MM
Barlow Lens: 0.5X & 0.7&2.0X(optional)
Objective: 0.7-5.0X
Camera connector
Monitor and eyepiece. Synchronous zoom
Camera: Can’t add camera
Boom Stand: 250mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate
Accessories: 144 adjustable led light & dust proof Lens
Product Description
Microscopic structure
1 Eyepiece Shield
2 Eyepieces
3 Zoom Control Knob
2 Eyepieces
3 Zoom Control Knob
4 Microscope objective
5 clip
6 black and white plate
7 Pillar position
8 Focusing knob
9Round Column
10Head
Support parameters
Column aperture: Φ32mmLens aperture: Φ76mmCenter distance: 155mmLifting range: 50mm
The base parameters
Column height: 240mmDiameter：φ32mm Equipped with pressing tabletand Φ95mm black and white plateBase: 200 x255x22mm
Wide-angle eyepieces 10X/22
Magnification: 10X
Wide Field Of View 22mm
Matching size : 30mm
Applicable models are stereoscopic, fixed and continuous magnification microscopes

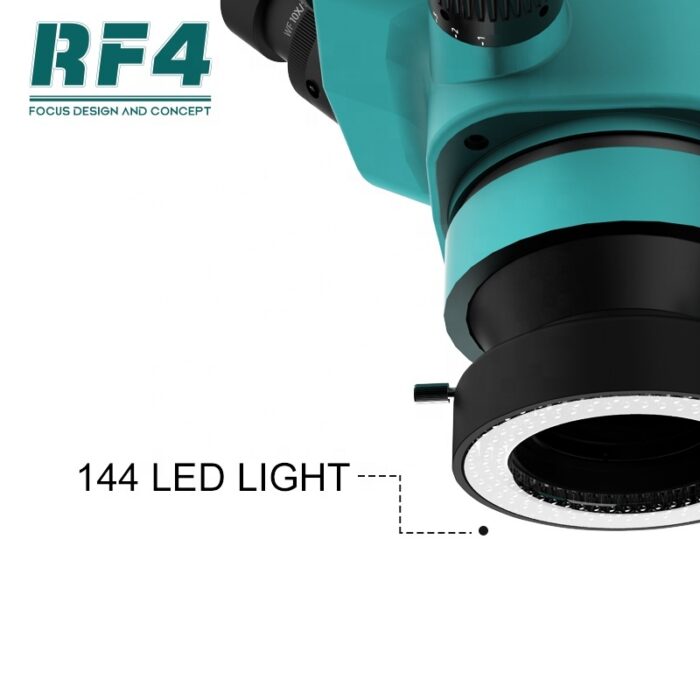

144 Led Ring Light
Input ：AC 100-240V , 50/60Hz
Output：144-LED Lamp Ring
Inside diameter：60mm
Light color：White
Different eyepieces match different magnifications of the same objective lens
 |
 |
 |
 |
 |
 |
